2004 Series

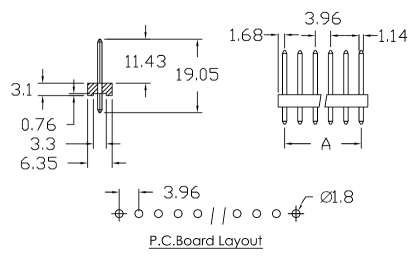

0.156" Center Header

Material:

Contact: Brass
Contact Plating: 0.000150" Tin over 0.000100" Nickel Underplating
Insulator: Nylon 66; rated UL94V-O
Mating Connector: 2006 Series

Electrical:

Current Rating: 5 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 500 Megohms Min. DC 500V
Dielectric Strength: 1500V AC
Operation Temperature: -40^oC to +105^oC

2004 -

[][]

Series Number

Number of Positions

[ 1 thru 20 pins ]
