2251 Series
1.27 x 1.27mm Dual Row PCB Socket Strip

Material:
Contact: Phosphor Bronze
Contact Plating: Selected Gold over 0.000100" Nickel Underplating
Insulator: Nylon N6 Polyester UL94V-O
Insulator Color: Black

Electrical:
Current Rating: 1 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 300V AC
Operation Temperature: -40oC to +105oC

RoHs
Ordering Part Number
2251 - 2 X [][] [][]
 []
Series Number Number of Rows Number of Positions Per Row Body Height
 Contact Plating
2251 :Straight
2251R :Right Angle
[ 3 thru 50 pins ] Blank: 4.4mm
H3: 3.4mm
 G: 5u" Gold Mating / Tin solder tail

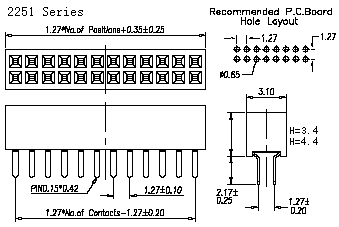

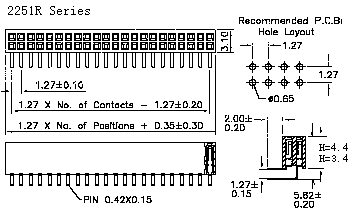

Drawing:
spec_2251.gif spec_2251R.gif
