2254 Series
0.079"/2.00mm Single Row PCB Socket Strip
Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel
Underplating
Insulator:?/font>PBT & 30% glass fiber reinforced
thermo plastic; rated UL94V-O
Insulator Color: Black
Mating Connectors: 2524
, 2525 Series
Electrical:
Current Rating: 2 Amp
Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC
500V
Dielectric Strength: 500V AC
Operation Temperature: -25oC to +105oC

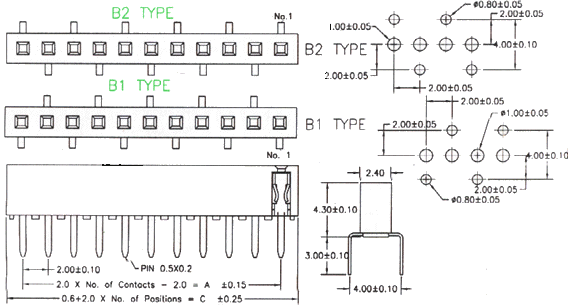

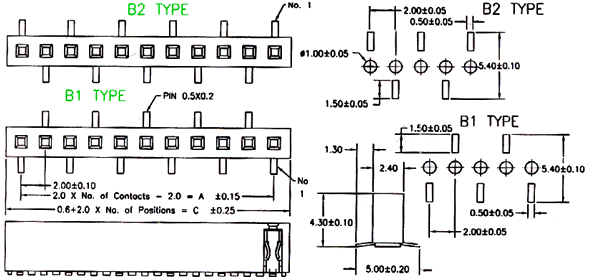

Drawing:

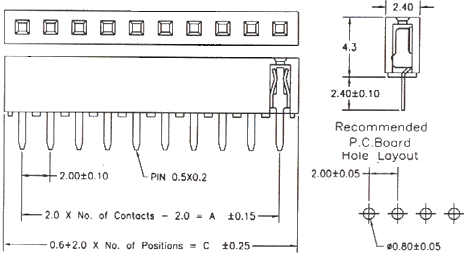

Vertical 2254-XX

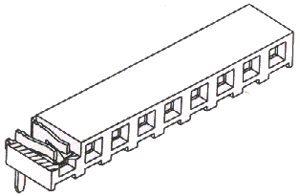

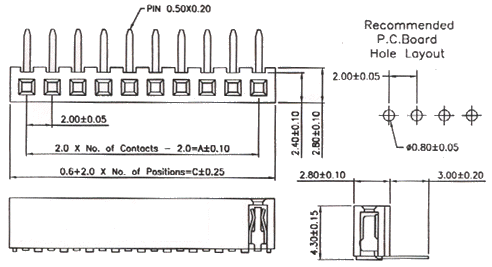

??????? Right Angle 2254-XXR
|
