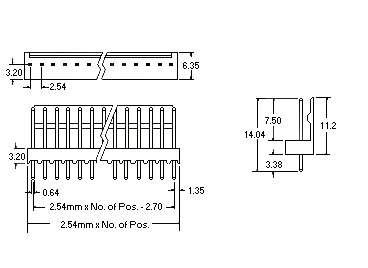

2506 Series
 0.100" Center Friction Lock; Header

Material:

Contact: Phosphor Bronze
Contact Plating: 0.000150" Tin over 0.000100" Nickel Underplating
Insulator: Nylon 66; rated UL94V-O
Mating Connector: 2500 Series

Electrical:

Current Rating: 1 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -25^oC to +85^oC

Ordering Part Number
