Ho Chien Enterprise Co., Ltd.

2507 Series

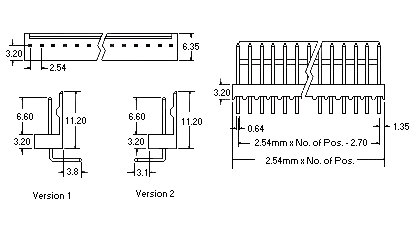

?.100" Center Friction Lock Header
[ Right Angle ]

Material:

Contact: Phosphor Bronze
Contact Plating: 0.000150" Tin over 0.000100" Nickel Underplating
Insulator:?/font>Nylon 66; rated UL94V-O
Mating Connector: 2500 Series

Electrical:

Current Rating: 1 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -25^oC to +85^oC

Ordering Part Number

2507 -	[][]	[]	[]
Series Number	Number of Positions	Versions	Plating
	[ 2 thru 20 pins ]	Blank: Version 1 ?3kea min.) A: Version 2 (100K PIN MIN.)	Blank: Tin Plating G: Gold Plating,?(150K pin min.)
