Ho Chien Enterprise Co., Ltd.

2522 Series
0.078"/2.0mm Center Un-shrouded Header Strip; Dual Row

Material:
Contact: Phosphor Bronze
Contact Plating: Gold over 0.000100" Nickel Under plating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mini Jumper: 2546-07 Series

Electrical:
Current Rating: 1 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 5000 Meg ohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55^oC to +140^oC

Ordering Part Number

2522 -	2 x [][]	[]	[]	[]	[][][][]
Series Number	Number of Rows Positions Per Row	Contact Plating	Mounting Option	Package	Size
2522 Through Hole Header	[ 2 thru 40 pins ]	G: 5u" Gold F: 10u" Gold (MOQ) E: 15u" Gold (MOQ) D: 30u" Gold (MOQ)	Blanket: None	Blanket: Bag
2522S Surface Mount Header	[ 2 thru 40 pins ]		P: w Post O: w/o Post	B: Tube T: Tape Reel TC: Tape Reel + Cap (For auto insertion M/C) * Available Mold: 2X4, 2X6, 2X7, 2X13, 2X17,2X22
2522S-2- Surface Mount Stack Heade	[ 3 thru 25 pins ]	G: 5u" Gold GT: 5u" Selected Gold	Blanket: w Post	B: Tube T: Tape ReelReel + Cap (For auto insertion M/C)	Contact us for details.

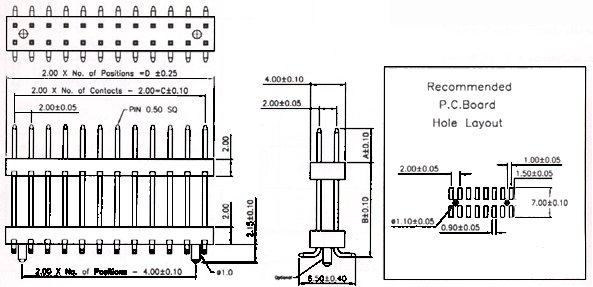

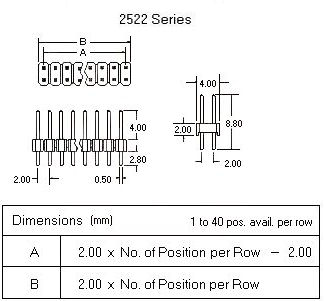

2522 Series

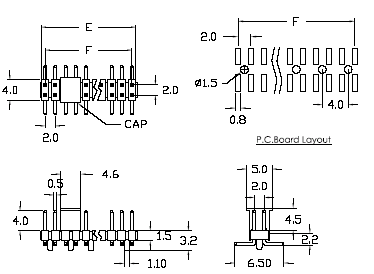

2522S Series

2522S-2 Stack Series
