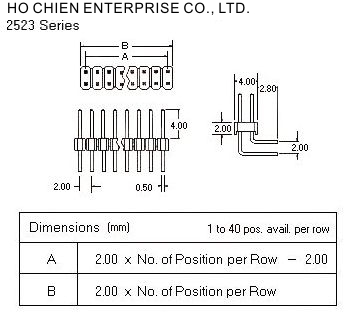

2523 Series
0.078" / 2mm Center Un-shrouded Header Strip; Dual Row
[ Right Angle ]
Material:
Contact: Phosphor
Bronze
Contact Plating: Gold over 0.000100" Nickel
Underplating
Insulator: PBT & 30% glass fiber
reinforced thermo plastic; rated UL94V-O
N6 High Temperature for SMT
Insulator Color: Black
Mini Jumper: 2546-07
Series
Electrical:
Current Rating: 1
Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min.
DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55oC to +140oC
|
