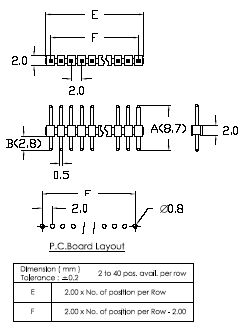

2524 Series (Straight)

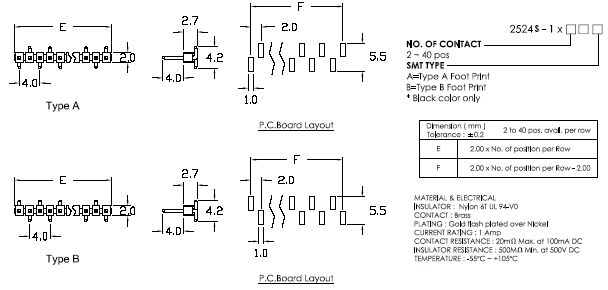

2524S Series (SMT)

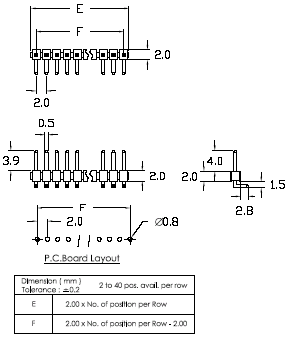

2525 Series (Right Angle)
0.078" / 2mm Center Un-shrouded Header Strip; Single Row

Material:

Contact: Phosphor Bronze
Contact Plating: Gold over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mini Jumper: 2546-07 Series

Electrical:

Current Rating: 1 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55^oC to +140^oC

Custom Size:
1. 2524-1X__G7.6 Length: (4/2/1.6mm)
2. 2524-1X__G7.6-2.8 Length (2.8/2.0/2.8mm)
3. 2525-1X__G-9.8

Ordering Part Number

2524-	1 x	- [][]	[]	[]
Series Number	Number of Rows	Number of Positions	Contact Plating Gold	Orientation
2524 (Straight) 2525 (Right Angle) 2524S (Surface Mount)		[ 1 thru 40 pins ]	G: 5u" Gold F: 10u" Gold (MOQ) E: 15u" Gold (MOQ) D: 30u" Gold (MOQ)	A: for SMT A orientation. B: for SMT B orientation.

2524 (Straight)	2525 (Right Angle)
2524S (Surface Mount)
