Ho Chien Enterprise Co., Ltd.

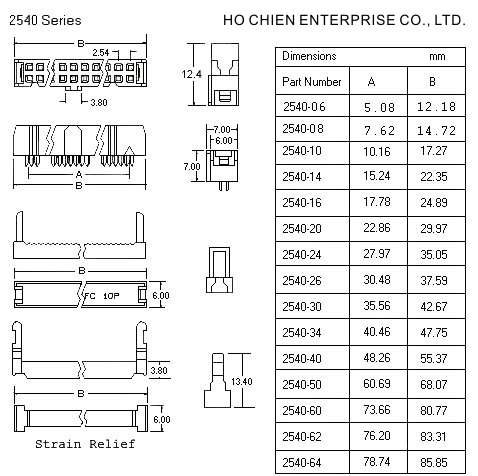

2540 Series -
0.1" x 0.1" ctr. IDC Socket for .05" ctr flat ribbon cable

Materials:

Contact: Phosphor Bronze
Contact Plating: Selective Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Black

Recommended Cable: 1.27mm ctr. Ribbon Cable 28 AWG; FC Series
Recommended Mating Connector:2530, 2531, 2532, 2533, Series

Electrical:

Contact Current Rating: 5 Amp
Contact resistance: 30 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55^oC to +105^oC

RoHs

Ordering Part Number

2540 -	[][]	[]	- []	- []
Series Number	Number of Positions	Contact Plating	Options	Color
	6, 8, 10, 12, 14, 16, 20, 24, 26, 30, 34, 40,50, 60, 62, 64	Blank: 5u" Gold F: 10u" Gold E: 15u" Gold D: 30u" Gold	Blank: With Polarization and Strain Relief N: Without Center Polarization 2: Without Strain Relief 2N: Without Polarization and Strain Relief	Blank: Black color G: Grey Color

Plug Key Part Number: 2540-KB (Black Color)
Quantity: 10000pcs/Bag
