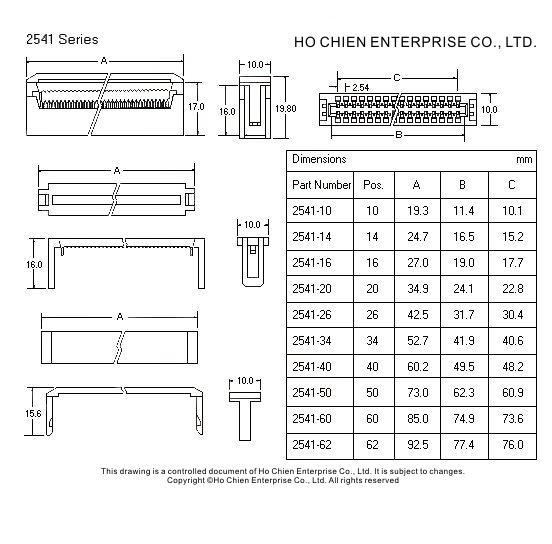

2541 Series - RoHs Compliant
0.100" Edge Card for .050" ctr flat ribbon cable

Materials:

Contact: Phosphor Bronze
Contact Plating: Selective Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Black

Recommended Cable: 1.27mm ctr. Ribbon Cable 28 AWG; FC Series
Contact Ho Chien for Wireharness assembly.

Electrical:

Contact Current Rating: 5 Amp
Contact resistance: 30 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 500V AC min. rms
Operation Temperature: -55oC to +125oC


RoHs
Ordering Part Number
2541 - [][] [] - []
Series Number Number of Positions Contact Plating Strain Relief

10, 14, 16, 20, 26,
34, 40, 50, 60, 62, 64		 Blank: 5u" Select Gold
F: 10u" Select Gold (MOQ)
E: 15u" Select Gold (MOQ)
D: 30u" Select Gold (MOQ)		 Blank: Without
-3: with
