Ho Chien Enterprise Co., Ltd.

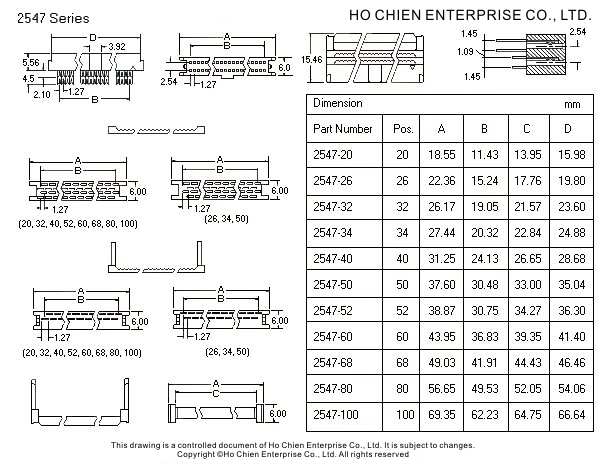

2547 Series
0.050" x 0.100" ctr. IDC Socket for 0.050" ctr flat ribbon cable

Materials:
Contact: Phosphor Bronze
Contact Plating: Selective Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Black

Recommended Cable: 1.27mm ctr. Ribbon Cable 28 AWG; FC Series
Recommended Mating Connectors: 2534, 2535, 2536, 2537, Series

Electrical:
Contact Current Rating: 1 Amp
Contact resistance: 30 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 500V AC min. rms
Operation Temperature: -55^oC to +105^oC

Ordering Part Number

2547 -	[][]	[]	- 3
Series Number	Number of Positions	Contact Plating	With Strain Relief
	10, 14, 16, 20, 26, 30, 34, 40, 50, 60, 68, 80, 100	Blank: 5u" Gold F: 10u" Gold E: 15u" Gold D: 30u" Gold	Blank: w/o Strain Relief
