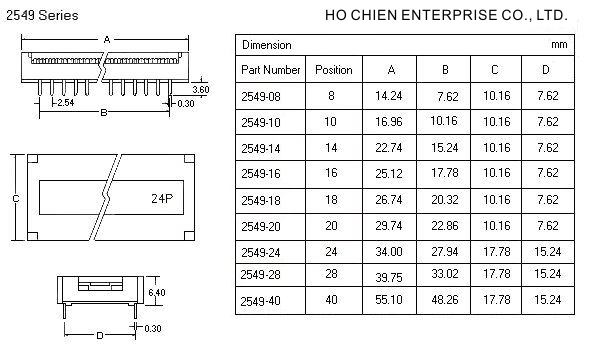

2549 Series
0.100" Dip Plug for .050" ctr flat ribbon cable

Materials:

Contact: Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Gold
IDC Contact Plating: 00381mm [0.000150"] Tin
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Black

Recommended Cable: 1.27mm ctr. Ribbon Cable 28 AWG; FC Series

Electrical:

Contact Current Rating: 1Amp
Contact resistance: 30 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 500V AC min. rms
Operation Temperature: -55^oC to +105^oC

Ordering Part Number
