2550-L, 2550-A, 2550-B Series
0.100" Center Terminal Housing
[ w & w/o Locking Tab ]

Material:

Contact: Phosphor Bronze
Contact Plating: Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mating Connector:25100, 25110, Series

Electrical:

Current Rating: 3 Amp Max.
Contact Resistance: 10 Milliohms. Max.
Insulation Resistance: 500 Megohms Min. DC 500V
Dielectric Strength: 1500V AC
Operation Temperature: -25oC to +105oC

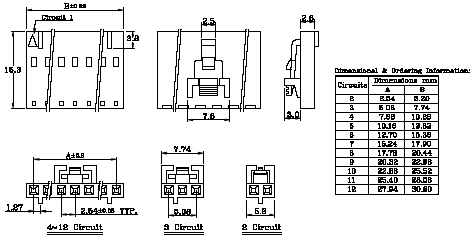

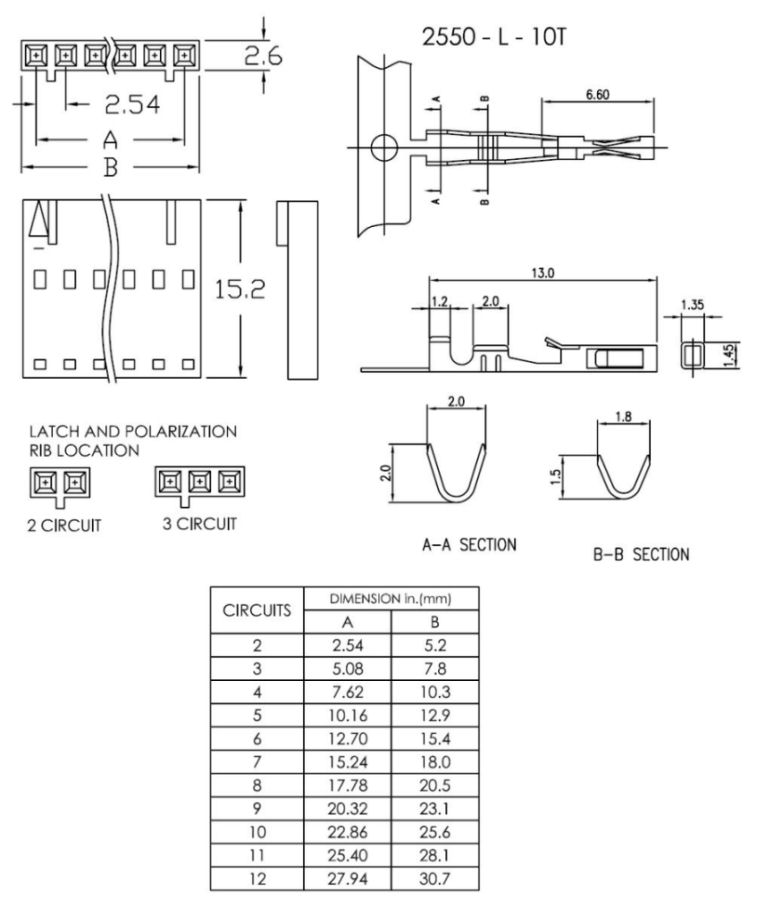

Pdf Drawing:  Housing 2550-L
                       Contact 2550-L-10T
2550-L

2550-A
2550-B


Ordering Part Number
2550 - L - 1 X [][]
Series Number Number of Rows Number of Positions per Row

1: Single Row [ 2 thru 12 pins ]
[13 thru 25 pins] MRQ request
Plug Key Part Number: 2550-KB (Black Color)
                            2550-KW (White Color)
Quantity per bag: 10000 pcs
Terminal Contacts Part Number: 2550-L-10T
Quantity per reel: 15000 pcs
Quantity per carton: 90,000 pcs

2550 - A -
 1 X
 [][]
Series Number
 Number of Rows
 Number of Positions per Row

1: Single Row
 [ 2 thru 12 pins ]

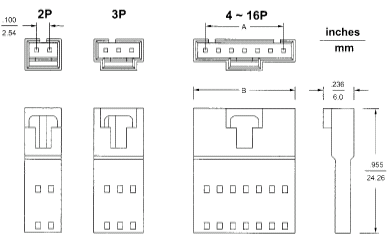

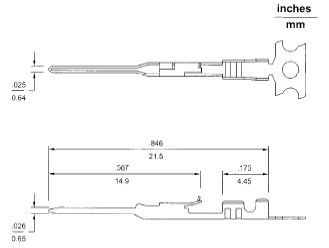

Terminal Contacts Part Number: 2550-A-10T (Male Contact)
Quantity per reel: 15000 pcs
Quantity per carton: 90,000 pcs

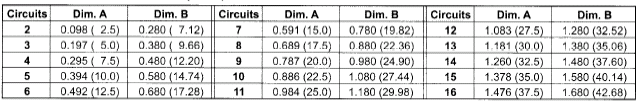

2550 - B -
 1 X [][]

Number of Rows Number of Positions per Row
  1: Single Row [ 2 thru 12 pins ]
Terminal Contacts Part Number: 2550-L-10T (Female Contact)
2550 - L
2550 - A

2550 - B
