2551 Series
0.100" Edge Card Connector

Material:

Contact: Copper Alloy
Contact Plating: 0.000150" Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black

Electrical:

Current Rating: 3 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55oC to +85oC











Ordering Part Number

2551-

[][]

[]

- [][]

- [][]

Series
Number

Number of
Positions

Contact Selected
Plating Gold

Contact Style /

Mounting Option

2551-
(Straight)

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

46

48

50

52

54

56

58

60

62

64

66

68

70

72

74

76

78

80

82

84

86

88

90

92

94

96

98

100

102

106

108

110

112

114

116

118

Blank: 5u"
F: 10u"
E: 15u"
D: 30u"

Blank: Straight lead
K2: With 2 pairs Kink
K4: With 4 pairs Kink

Blank: Standard (6~118)
E: Mounting Ear (6~72)
EZ: Mounting_Ear/BoardLock

Series
Number

Number of
Positions

Contact Selected
Plating Gold

Row to Row Pitch

Control Number

2551R-
(Right Angle)

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

40

42

44

46

48

50

52

54

56

58

60

62

64

66

68

70

72

74

76

78

80

82

84

86

88

90

92

94

96

98

100

102

104













Blank: 5u"
F: 10u"
E: 15u"
D: 30u"

A: 5.08mm
B: 3.81mm
C: 2.54mm

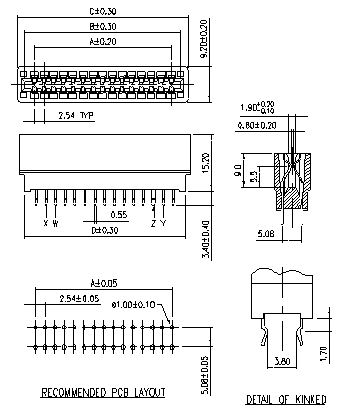

2551

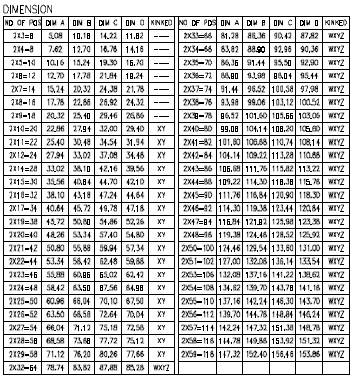

2551

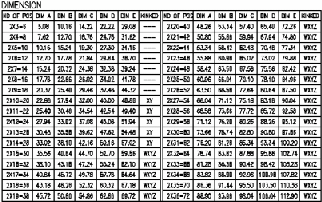

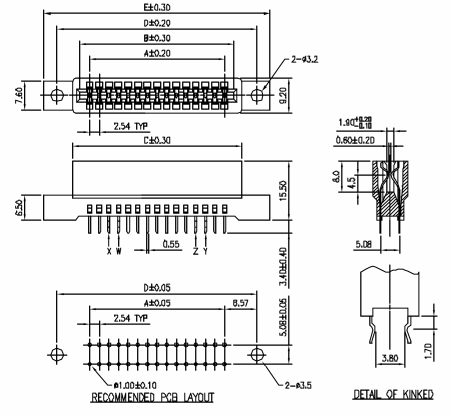

2551E




2551E

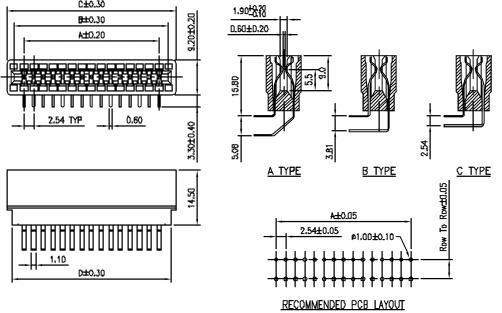

2551R

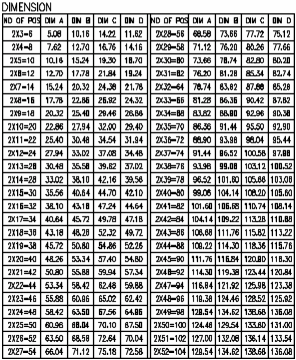

2551R
