Ho Chien Enterprise Co., Ltd.

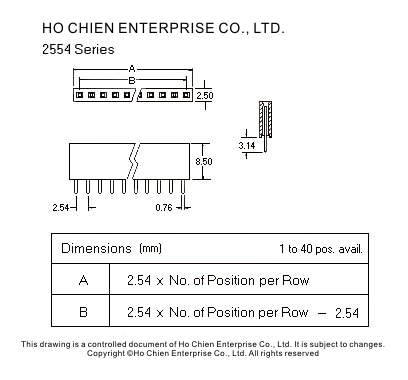

2554 Series
?.100" Single Row PCB Socket Strip

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator:?/font>PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black
Mating Connectors: 2544 , 2545 Series

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55^oC to +105^oC

** Surface Mount type: 2554-SMD

Ordering Part Number

2554 -	1 X	[][]	[]	-[]
Series Number	1 Rows	Number of Positions	Contact Plating	Housing High
		[ 2 thru 40 pins ]	G: 5u" Gold F: 10u" Gold E: 15u" Gold D: 30u" Gold	Blanket: 8.5mm 01: 11mm 02 : 5.0mm 03 : 7.10mm 04 : 6.80mm
