2554 S.M.T. SERIES

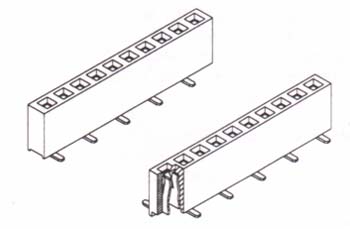

Pitch:2.54mm(0.1") Female Header,Single Row, S.M.D
Materials: RoHs
Contact Material: Copper Alloy
Contact Plating: Gold/Tin over Nickel
Insulator: Glass Filled Polyster(UL 94V-0)
Electrical:
Current Rating: 3 Amp
Insulation Resistance: 500 M Ohm Min
Dielectric Withstanding: 600V AC
Contact Resistance: 20m OHM Max.
Operating Temperature: -40 C To +105C
Ordering Part Number
| 2554M - 1 | X[][] | G | - R1 | - T |
| Series Number | Number of Rows | Finished Plating |
Type | Package |
| [
2 thru 40 pins ] |
T: 150u" Tin G: 5u" Gold F: 10u" Gold E: 15u" Gold D: 30u" Gold |

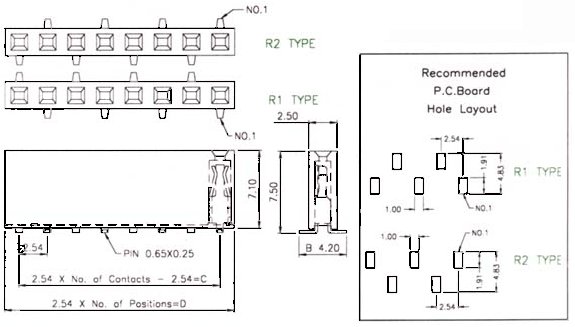

R1 R2 |
Blank: Tube T: Tape Reel / Cap |
|
|
|
|
