2556 Series
0.100" Dual Wipe Dip IC Socket

Material:
Contact: Phosphor Bronze
Contact Plating: 0.000200" Tin over 0.000100" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black

Electrical:
Operation Voltage: 250V AC Max.
Current Rating: 1 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC

Mechanical:
Insertion Force: 12 oz Max. Per contact.
Withdrawal Force: 0.5 oz Max. Per contact.
Operation Temperature: -55^oC to +105^oC

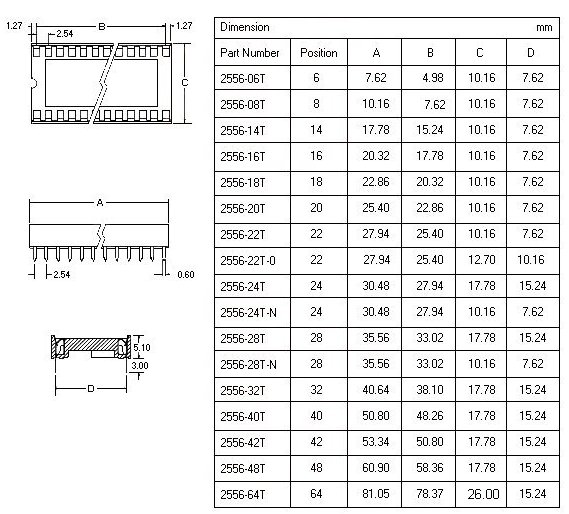

Ordering Part Number
