Ho Chien Enterprise Co., Ltd.

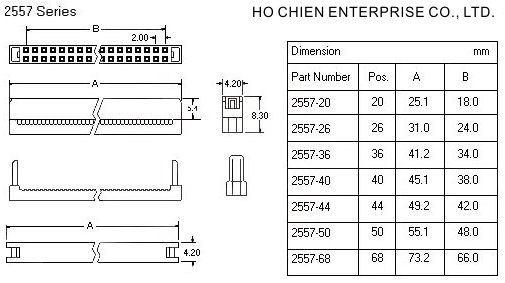

2557 Series
0.078" x 0.078" (2mm) ctr. IDC Socket for .039" (1mm) ctr
flat ribbon cable

Materials:

Contact: Phosphor Bronze
Contact Plating: Selective Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Black

Recommended Cable: 0.039" ctr. Ribbon Cable FC-XX-100

Electrical:

Contact Current Rating: 1 Amp
Contact resistance: 30 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 500V AC min. rms
Operation Temperature: -40^oC to +105^oC

RoHs

Ordering Part Number


2557 -	[][]	- []	- []
Series Number	Number of Positions	Contact Plating Gold	Bump Strain relief
	6, 8, 10, 12, 14, 16, 18 20, 22,24, 26, 28, 30 32, 34, 36, 34, 36, 40 44, 50, 56, 60, 62, 64, 68	Blank: 5u" F: 10u" (min. qty.) E: 15u" (min. qty.) D: 30u" (min. qty.)	Blank: W/O Bump, W/O Strain Relief. 3: W/O Bump, W Strain Relief. B: W Bump, W/O Strain Relief. 3B: W Bump, W Strain Relief.

Plug Key Part Number: 2557-KW (White Color), 2557-KB (Black Color)
Quantirt:10K per bag.
Ribbon Cable: FC-XX-100
