2560 Series 0.100" PLCC Socket

Material:
Contact: Phosphor Bronze
Contact Plating: 100u" Tin over 80u" Nickel Underplating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
     or        PPS & 40% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black

Electrical: (Per MIL-STD-202E)
Current Rating: 1 Amp Max. (Unit Rating), 2 Amp Max. (Contact Rating).
Capacitance: 1.0pF max. between adjacent Contacts.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55^oC to +105^oC (PBT)
                                       -55^oC to +125^oC (PPS)

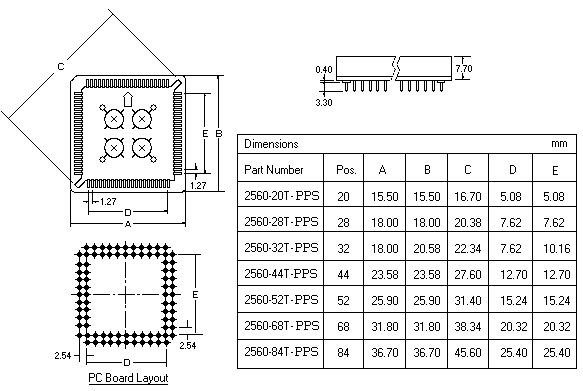

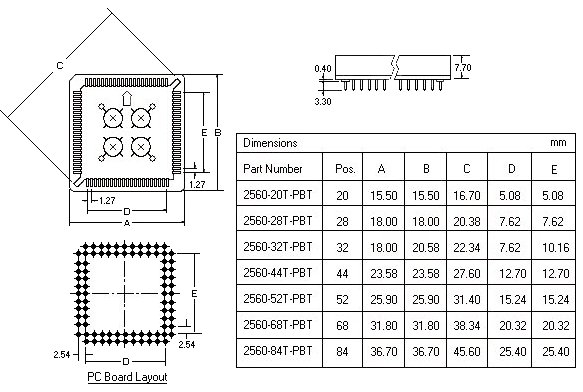

Ordering Part Number
