Ho Chien Enterprise Co., Ltd.

2564 Series
0.200" Ctr Un-shrouded Header Strip; Single Row

Material:
Contact: Phosphor Bronze
Contact Plating: Gold or Tin over 0.000100" Nickel Under plating
Insulator: PBT & 30% glass fiber reinforced thermo plastic; rated UL94V-O
Insulator Color: Black

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 5000 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -55^oC to +140^oC

Ordering Part Number

2564-	1 x	-[][]	[]
Series Number	Number of Rows	Number of Positions	Contact Plating
		[ 1 thru 20 pins ]	T: 150u" Tin G: 5u" Gold F: 10u" Gold (MOQ) E: 15u" Gold (MOQ) D: 30u" Gold (MOQ)

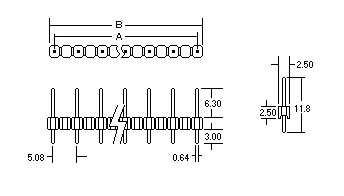

Dimensions (mm)
A	[ 5.08 x No. of Pos. ] - 5.08
B	[ 5.08 x No. of Pos. ] - 2.54
