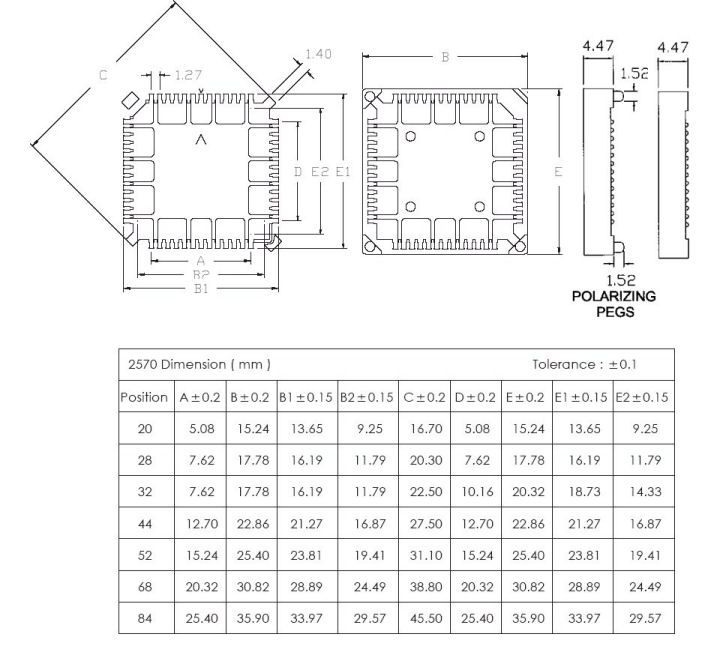

2570 Series  RoHS compliant
PLCC Socket; Surface Mount

Material:

Contact: Phosphor Bronze
Contact Plating: 0.000150" Tin over 0.000100" Nickel Underplating
Insulator: PPS & 40% glass fiber reinforced thermo plasitc; rated UL94V-O
Insulator Color: Black

Electrical:

Current Rating: 1 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55^oC to +125^oC

Ordering Part Number: PDF file
