3002 Series
D-Sub PCB Vertical Type Machine Contacts

Material:

Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Berylium Copper - Precision Machine Formed
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: White (optional Black and Blue)

Alternative: Stamped Contact Type [ click here ]

Electrical:

Contact Current Rating: 7.5 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55^oC to +105^oC

Ordering Part Number

Shell
Size

No. of
Position

Plug/
Recept

Tin Shell

Zinc Shell

Mounting Hole

Clinch Nut

Fixed Jackscrew

Standoff

Standoff
Boardlock

Mounting Hole

E

9

Plug

3002-01

3002-01-2N

3002-01-2NA

3002-01-2NB

3002-01-2ND

3002-01Z

Recept

3002-11

3002-11-2N

3002-11-2NA

3002-11-2NB

3002-11-2ND

3002-11Z

A

15

Plug

3002-02

3002-02-2N

3002-02-2NA

3002-02-2NB

3002-02-2ND

3002-02Z

Recept

3002-12

3002-12-2N

3002-12-2NA

3002-12-2NB

3002-12-2ND

3002-12Z

-

19

Plug

3002-03

3002-03-2N

3002-03-2NA

3002-03-2NB

3002-03-2ND

3002-03Z

Recept

3002-13

3002-13-2N

3002-13-2NA

3002-13-2NB

3002-13-2ND

3002-13Z

-

23

Plug

3002-04

3002-04-2N

3002-04-2NA

3002-04-2NB

3002-04-2ND

3002-04Z

Recept

3002-14

3002-14-2N

3002-14-2NA

3002-14-2NB

3002-14-2ND

3002-14Z

B

25

Plug

3002-05

3002-05-2N

3002-05-2NA

3002-05-2NB

3002-05-2ND

3002-05Z

Recept

3002-15

3002-15-2N

3002-15-2NA

3002-15-2NB

3002-15-2ND

3002-15Z

C

37

Plug

3002-06

3002-06-2N

3002-06-2NA

3002-06-2NB

3002-06-2ND

3002-06Z

Recept

3002-16

3002-16-2N

3002-16-2NA

3002-16-2NB

3002-16-2ND

3002-16Z

D

50

Plug

3002-07

3002-07-2N

3002-07-2NA

3002-07-2NB

3002-07-2ND

3002-07Z

Recept

3002-17

3002-17-2N

3002-17-2NA

3002-17-2NB

3002-17-2ND

3002-17Z

* Also Available (Contact Ho Chien for more information):
- Mounting options in Zinc Shell.
- Blue or Black insulation.
- Contact gold plating upgrade. **
- Custom length of contact leads. **
- All connectors can be customly altered to fit your needs. **
** minimum orders and/or tooling charges may apply

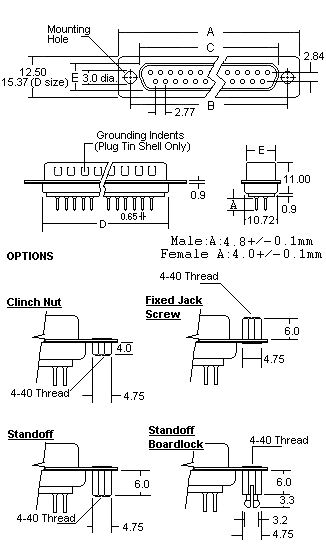

Mechanical Specification and Mounting Option:
