3002 Wire Wrap Series
D-Sub PCB Vertical Type Machine Contacts Wire Wrap

Material:

Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Berylium Copper - Precision Machine Formed
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
                  High Temperature PA6T Arlen Grains - High Temperature 260C Suffix N6
Color: White (optional Black)


Electrical:

Contact Current Rating: 7.5 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55^oC to +105^oC (PBT & 30% Glass Fiber)
Solder Temperature: +260^oC (PA6T)

EMI Ferrite Version available: 3002-11TFE-W4

3002-

[][]

[]

[]

-[][]

W[]

Type
[]: O: Male
     1: Female
Position
[]: 1: 9 pos.
     2: 15 pos.
     5: 25 pos.
     6: 37 pos.
     7: 50 pos.

T: Tin Shell
Z: Zinc Shell

Insulator
Blanket: PBT & 30% Glass Fiber
N6:High Temperature PA6Tr

Mounting  Option

Wire Wrape Length
W1: 6.10mm / 0.24"
W2: 7.62mm / 0.30"
W3: 13.00mm / 0.51"
W4: 14.50mm / 0.57"
W5: 17.78mm / 0.70"
W6: 10.00mm / 0.39"
W7: 19.60mm / 0.77"
W8: 24.00mm / 0.945"

Ordering Part Number

Shell
Size

No. of
Position

Plug (M) /
Recept (F)

Tin Shell

Mounting Hole

Clinch Nut

Fixed Jackscrew

Standoff
Boardlock 6.0mm

E

9

Plug (M)

3002-01T-W[]

3002-01T-2N-W[]

3002-01T-2NA-W[]

3002-01T-2ND-W[]

Recept (F)

3002-11T-W[]

3002-11T-2N-W[]

3002-11T-2NA-W[]

3002-11T-2ND-W[]

A

15

Plug (M)

3002-02T-W[]

3002-02T-2N-W[]

3002-02T-2NA-W[]

3002-02T-2ND-W[]

Recept (F)

3002-12T-W[]

3002-12T-2N-W[]

3002-12T-2NA-W[]

3002-12T-2ND-W[]

B

25

Plug (M)

3002-05T-W[]

3002-05T-2N-W[]

3002-05T-2NA-W[]

3002-05T-2ND-W[]

Recept (F)

3002-15T-W[]

3002-15T-2N-W[]

3002-15T-2NA-W[]

3002-15T-2ND-W[]

C

37

Plug (M)

3002-06T-W[]

3002-06T-2N-W[]

3002-06T-2NA-W[]

3002-06T-2ND-W[]

Recept (F)

3002-16T-W[]

3002-16T-2N-W[]

3002-16T-2NA-W[]

3002-16T-2ND-W[]

D

50

Plug (M)

3002-07T-W[]

3002-07T-2N-W[]

3002-07T-2NA-W[]

3002-07T-2ND-W[]

Recept (F)

3002-17T-W[]

3002-17T-2N-W[]

3002-17T-2NA-W[]

3002-17T-2ND-W[]

* Also Available (Contact Ho Chien for more information):
- Mounting options in Zinc Shell.
- White or Black insulation.
- Contact gold plating upgrade. **
- Custom length of contact leads. **
- All connectors can be customly altered to fit your needs. **
** minimum orders and/or tooling charges may apply

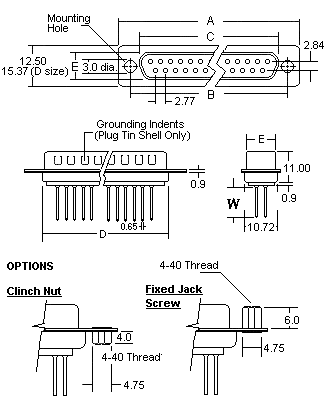

Mechanical Specification and Mounting Option:
