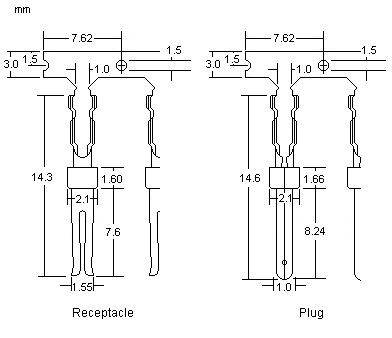

Crimp Contacts for D-Subs

  • Crimp Contacts are made standard for all 2.77mm density D-Sub Housing and Combo D-Sub Housing.
  • Available in both precision machine formed and economic stamped form.
  • Contacts can be used on most industry standard type crimp toolings and applicators.
  • For Wire size #22-30 Awg.


Economic Stamped Type

Material: Phosphor Bronze
Plating: Gold over 0.000100" Nickel
Wire size: 22-28AWG


Part Number

Gold Plating

Full Plating

Select Plating (Gold on contact end only)

0.000127mm
[0.000005"]

0.000127mm
[0.000005"]

0.000254mm
[0.000010"]

0.000381mm
[0.000015"]

0.000762mm
[0.000030"]

Plug Contact

3008-20

3008-30

*3008-30-GT10

*3008-30-GT15

*3008-30-GT30

Recept Contact

3008-40

3008-50

*3008-50-GT10

*3008-50-GT15

*3008-50-GT30

* Minimum order may apply.
* 5000 pcs contacts per reel
