3011 and 3021 Series
D-Sub High Density Solder Cup Type Stamp Pin contact

Material:
Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: White (optional Black and Blue)

Electrical:
Contact Current Rating: 5 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55oC to +105oC


Ordering Part Number
Shell
Size		 No. of
Position		 Plug (M) /
Recept (F)		 Tin Shell Zinc Shell
Mounting Hole Clinch Nut Fixed Jackscrew Mounting Hole Clinch Nut Fixed Jackscrew
E 15 Plug (M) 3011-15 3011-15-2N 3011-15-2NA 3011-15Z 3011-15Z-2N 3011-15Z-2NA
Recept (F) 3021-15 3021-15-2N 3021-15-2NA 3021-15Z 3021-15Z-2N 3021-15Z-2NA
A 26 Plug (M) 3011-26 3011-26-2N 3011-26-2NA 3011-26Z 3011-26Z-2N 3011-26Z-2NA
Recept (F) 3021-26 3021-26-2N 3021-26-2NA 3021-26Z 3021-26Z-2N 3021-26Z-2NA
B 44 Plug (M) 3011-44 3011-44-2N 3011-44-2NA 3011-44Z 3011-44Z-2N 3011-44Z-2NA
Recept (F) 3021-44 3021-44-2N 3021-44-2NA 3021-44Z 3021-44Z-2N 3021-44Z-2NA
C 62 Plug (M) 3011-62 3011-62-2N 3011-62-2NA 3011-62Z 3011-62Z-2N 3011-62Z-2NA
Recept (F) 3021-62 3021-62-2N 3021-62-2NA 3021-62Z 3021-62Z-2N 3021-62Z-2NA
D 78 Plug (M) 3011-78 3011-78-2N 3011-78-2NA 3011-78Z 3011-78Z-2N 3011-78Z-2NA
Recept (F) 3021-78 3021-78-2N 3021-78-2NA 3021-78Z 3021-78Z-2N 3021-78Z-2NA
* Also Available (Contact Ho Chien for more information):
- Blue or Black insulation.
- Contact gold plating upgrade. **
- Custom length of contact leads. **
- All connectors can be customly altered to fit your needs. **
** minimum orders and/or tooling charges may apply

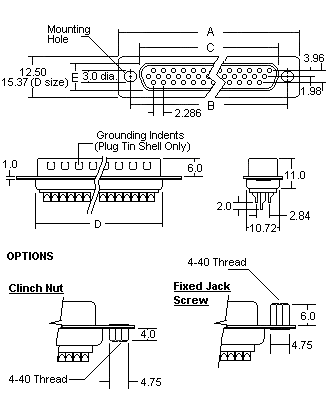

Mechanical Specification and Mounting Option:
Dimension (mm)
Shell
Size		 No.
Pos.		 Plug (M) /
Recept (F)		 A B C D E
E 15 Plug (M) 30.81 24.88 16.92 19.28 8.36
Recept (F) 16.33 7.90
A 26 Plug (M) 39.14 33.32 25.25 27.51 8.36
Recept (F) 24.66 7.90
B 44 Plug (M) 53.04 47.04 38.96 41.30 8.36
Recept (F) 38.38 7.90
C 62 Plug (M) 69.32 63.50 55.42 57.71 8.36
Recept (F) 54.84 7.90
D 78 Plug (M) 66.93 61.11 52.81 55.32 11.07
Recept (F) 52.43 10.74
