3024 Series
0.590" ( 14.99 mm ) D-Sub PCB Right Angle

Material:
Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Black

Alternative: Machine Contact Type [ click here ]

-N6 For High Temperature Insulator

Electrical:
Contact Current Rating: 5 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55^oC to +105^oC

Part Number Overview

Type

Flange

Boardlock

Part Number Series

Standard

Full Flange

Rear (16mm)

3024 Series

Click here for Ordering Part Number Table

Full

Front (8mm)

3024-F Series

Click here for Ordering Part Number Table

Half

Half Flange

3024-H Series

Click here for Ordering Part Number Table

* Also Available (Contact Ho Chien for more information):
- Mounting options in Zinc Shell.
- 4 pronge boardlock
- Contact gold plating upgrade. **
- Custom length of contact leads. **
- All connectors can be customly altered to fit your needs. **
** minimum orders and/or tooling charges may apply

Ordering Part Number
Type: Standard ( Full Flange, Rear Boardlock )

Shell
Size

No.
Pos.

Plug (M) /
Recept (F)

Tin Shell

Zinc Shell

Jackscrew /
Boardlock

Rivet Insert /
Boardlock

Rivet Insert /
No Boardlock

Jackscrew /
No Boardlock

Rivet Insert /
Boardlock
w/ Jackscrew

Rivet Insert /
No Boardlock
w/ Jackscrew

Jackscrew /
Boardlock

E

9

Plug (M)

3024-01

3024-01A

3024-01B

3024-01C

3024-01AA

3024-01BA

3024-01Z

Recept (F)

3024-11

3024-11A

3024-11B

3024-11C

3024-11AA

3024-11BA

3024-11Z

A

15

Plug (M)

3024-02

3024-02A

3024-02B

3024-02C

3024-02AA

3024-02BA

3024-02Z

Recept (F)

3024-12

3024-12A

3024-12B

3024-12C

3024-12AA

3024-12BA

3024-12Z

B

25

Plug (M)

3024-05

3024-05A

3024-05B

3024-05C

3024-05AA

3024-05BA

3024-05Z

Recept (F)

3024-15

3024-15A

3024-15B

3024-15C

3024-15AA

3024-15BA

3024-15Z

C

37

Plug (M)

3024-06

3024-06A

3024-06B

3024-06C

3024-06AA

3024-06BA

3024-06Z

Recept (F)

3024-16

3024-16A

3024-16B

3024-16C

3024-16AA

3024-16BA

3024-16Z

Ordering Part Number
Type: Full ( Full Flange, Front Boardlock )

Shell
Size

No.
Pos.

Plug (M) /
Recept (F)

Tin Shell

Zinc Shell

Jackscrew /
Boardlock

Rivet Insert /
Boardlock

Rivet Insert /
No Boardlock

Jackscrew /
No Boardlock

Rivet Insert /
Boardlock
w/ Jackscrew

Rivet Insert /
No Boardlock
w/ Jackscrew

Jackscrew /
Boardlock

E

9

Plug (M)

3024-01-F

3024-01A-F

3024-01B-F

3024-01C-F

3024-01AA-F

3024-01BA-F

3024-01Z-F

Recept (F)

3024-11-F

3024-11A-F

3024-11B-F

3024-11C-F

3024-11AA-F

3024-11BA-F

3024-11Z-F

A

15

Plug (M)

3024-02-F

3024-02A-F

3024-02B-F

3024-02C-F

3024-02AA-F

3024-02BA-F

3024-02Z-F

Recept (F)

3024-12-F

3024-12A-F

3024-12B-F

3024-12C-F

3024-12AA-F

3024-12BA-F

3024-12Z-F

B

25

Plug (M)

3024-05-F

3024-05A-F

3024-05B-F

3024-05C-F

3024-05AA-F

3024-05BA-F

3024-05Z-F

Recept (F)

3024-15-F

3024-15A-F

3024-15B-F

3024-15C-F

3024-15AA-F

3024-15BA-F

3024-15Z-F

C

37

Plug (M)

3024-06-F

3024-06A-F

3024-06B-F

3024-06C-F

3024-06AA-F

3024-06BA-F

3024-06Z-F

Recept (F)

3024-16-F

3024-16A-F

3024-16B-F

3024-16C-F

3024-16AA-F

3024-16BA-F

3024-16Z-F

Ordering Part Number
Type: Half ( Half Flange, Front Boardlock )

Shell
Size

No.
Pos.

Plug (M) /
Recept (F)

Tin Shell

Zinc Shell

Jackscrew /
Boardlock

Rivet Insert /
Boardlock

Rivet Insert /
No Boardlock

Jackscrew /
No Boardlock

Rivet Insert /
Boardlock
w/ Jackscrew

Rivet Insert /
No Boardlock
w/ Jackscrew

Jackscrew /
Boardlock

E

9

Plug (M)

3024-01-H

3024-01A-H

3024-01B-H

3024-01C-H

3024-01AA-H

3024-01BA-H

3024-01Z-H

Recept (F)

3024-11-H

3024-11A-H

3024-11B-H

3024-11C-H

3024-11AA-H

3024-11BA-H

3024-11Z-H

A

15

Plug (M)

3024-02-H

3024-02A-H

3024-02B-H

3024-02C-H

3024-02AA-H

3024-02BA-H

3024-02Z-H

Recept (F)

3024-12-H

3024-12A-H

3024-12B-H

3024-12C-H

3024-12AA-H

3024-12BA-H

3024-12Z-H

B

25

Plug (M)

3024-05-H

3024-05A-H

3024-05B-H

3024-05C-H

3024-05AA-H

3024-05BA-H

3024-05Z-H

Recept (F)

3024-15-H

3024-15A-H

3024-15B-H

3024-15C-H

3024-15AA-H

3024-15BA-H

3024-15Z-H

C

37

Plug (M)

3024-06-H

3024-06A-H

3024-06B-H

3024-06C-H

3024-06AA-H

3024-06BA-H

3024-06Z-H

Recept (F)

3024-16-H

3024-16A-H

3024-16B-H

3024-16C-H

3024-16AA-H

3024-16BA-H

3024-16Z-H

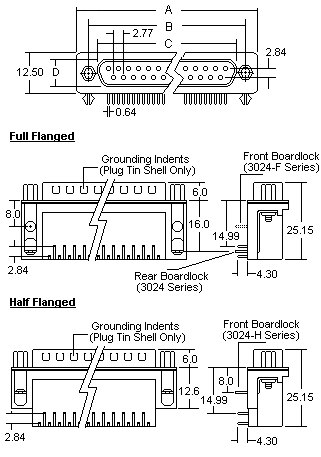

Mechanical Specification

Mounting Option
