3108 Series and 3208 Series
D-Sub Crimp Housing High Density

Material:

Shell: Steel w/ Tin Plated (optional Zinc plating)
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Contacts: [ click here ]

Electrical:

Contact Current Rating: 5 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55oC to +105oC


Ordering Part Number
Shell
Size		 No. of
Position		 Plug (M) /
Recept (F)		 Tin Shell Zinc Shell
Mounting Hole Clinch Nut Fixed Jackscrew Mounting Hole Clinch Nut Fixed Jackscrew
E 15 Plug (M) 3108-15 3108-15-2N 3108-15-2NA 3108-15Z 3108-15Z-2N 3108-15Z-2NA
Recept (F) 3208-15 3208-15-2N 3208-15-2NA 3208-15Z 3208-15Z-2N 3208-15Z-2NA
A 26 Plug (M) 3108-26 3108-26-2N 3108-26-2NA 3108-26Z 3108-26Z-2N 3108-26Z-2NA
Recept (F) 3208-26 3208-26-2N 3208-26-2NA 3208-26Z 3208-26Z-2N 3208-26Z-2NA
B 44 Plug (M) 3108-44 3108-44-2N 3108-44-2NA 3108-44Z 3108-44Z-2N 3108-44Z-2NA
Recept (F) 3208-44 3208-44-2N 3208-44-2NA 3208-44Z 3208-44Z-2N 3208-44Z-2NA
C 62 Plug (M) 3108-62 3108-62-2N 3108-62-2NA 3108-62Z 3108-62Z-2N 3108-62Z-2NA
Recept (F) 3208-62 3208-62-2N 3208-62-2NA 3208-62Z 3208-62Z-2N 3208-62Z-2NA
D 78 Plug (M) 3108-78 3108-78-2N 3108-78-2NA 3108-78Z 3108-78Z-2N 3108-78Z-2NA
Recept (F) 3208-78 3208-78-2N 3208-78-2NA 3208-78Z 3208-78Z-2N 3208-78Z-2NA
* Part Number includes Housing Only. Contacts are ordered separate.
* For contact part numbers and specification [ click here ]

* Also Available (Contact Ho Chien for more information):
- Blue or Black insulation.
- All connectors can be customly altered to fit your needs. **
** minimum orders and/or tooling charges may apply

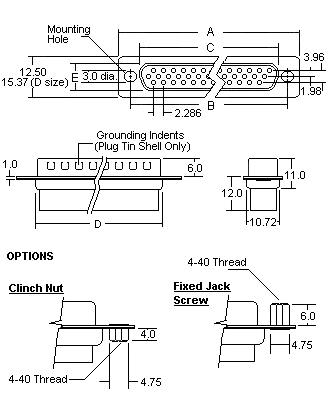

Mechanical Specification and Mounting Option:
Dimension (mm)
Shell
Size		 No.
Pos.		 Plug (M) /
Recept (F)		 A B C D E
E 15 Plug (M) 30.81 24.88 16.92 19.28 8.36
Recept (F) 16.33 7.90
A 26 Plug (M) 39.14 33.32 25.25 27.51 8.36
Recept (F) 24.66 7.90
B 44 Plug (M) 53.04 47.04 38.96 41.30 8.36
Recept (F) 38.38 7.90
C 62 Plug (M) 69.32 63.50 55.42 57.71 8.36
Recept (F) 54.84 7.90
D 78 Plug (M) 66.93 61.11 52.81 55.32 11.07
Recept (F) 52.43 10.74
