3206 Series
0.370" ( 9.40mm ) D-Sub PCB Right Angle

Material:

Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Black

Alternative: Machine Contact Type [ click here ]

Electrical:

Contact Current Rating: 5 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55^oC to +105^oC

Ordering Part Number

Shell
Size

No.
Pos.

Plug (M) /
Recept (F)

Tin Shell

Zinc Shell

Jackscrew /
Boardlock

Rivet Insert /
Boardlock

Rivet Insert /
No Boardlock

Jackscrew /
No Boardlock

Rivet Insert /
Boardlock
w/ Jackscrew

Rivet Insert /
No Boardlock
w/ Jackscrew

Jackscrew /
Boardlock

E

9

Plug (M)

3206-01

3206-01A

3206-01B

3206-01C

3206-01AA

3206-01BA

3206-01Z

Recept (F)

3206-11

3206-11A

3206-11B

3206-11C

3206-11AA

3206-11BA

3206-11Z

A

15

Plug (M)

3206-02

3206-02A

3206-02B

3206-02C

3206-02AA

3206-02BA

3206-02Z

Recept (F)

3206-12

3206-12A

3206-12B

3206-12C

3206-12AA

3206-12BA

3206-12Z

B

25

Plug (M)

3206-05

3206-05A

3206-05B

3206-05C

3206-05AA

3206-05BA

3206-05Z

Recept (F)

3206-15

3206-15A

3206-15B

3206-15C

3206-15AA

3206-15BA

3206-15Z

C

37

Plug (M)

3206-06

3206-06A

3206-06B

3206-06C

3206-06AA

3206-06BA

3206-06Z

Recept (F)

3206-16

3206-16A

3206-16B

3206-16C

3206-16AA

3206-16BA

3206-16Z

* Also Available (Contact Ho Chien for more information):
- Mounting options in Zinc Shell.
- 4 pronge boardlock
- Contact gold plating upgrade. **
- Custom length of contact leads. **
- All connectors can be customly altered to fit your needs. **
** minimum orders and/or tooling charges may apply

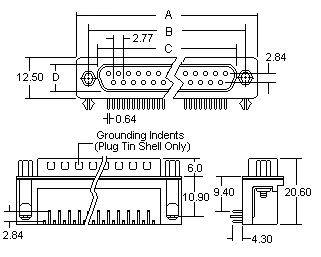

Mechanical Specification

Mounting Option
