3312 Series and 3322 Series ?Stamp pin contact)
D-Sub PCB High Density Vertical Type

Material:
Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
?????????PA6T Arlen Grains - High Temperature 260C
Color: White (optional Black (Suffix: -BK) and Blue (Suffix: -BL))

Electrical:
Contact Current Rating: 5 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55oC to +105oC

Ordering Part Number
Shell
Size		 No. of
Position		 Plug /
Recept?/font>		 Tin Shell Zinc Shell
Mounting Hole Clinch Nut Fixed
Jackscrew		 Standoff Standoff
Boardlock
6mm/3.3mm Standoff

Standoff
Boardlock
6mm/4.4mm Standoff
Standoff
Boardlock
6.4mm/3.3mm Standoff
Standoff
Boardlock w
Jackscrew Assembly N003-9.5		 Mounting Hole
E 15 Plug 3312-15 3312-15T-2N 3312-15-2NA 3312-15-2NB 3312-15-2ND
3312-15-BK-2ND
 -
 -
 3312-15-2NDJ 3312-15Z
Recept 3322-15 3322-15-2N 3322-15-2NA 3322-15-2NB 3322-15-2ND
3322-15-BK-2ND
 3322-15-2ND4
 3322-15-3ND
 3322-15-2NDJ 3322-15Z
A 26 Plug 3312-26 3312-26-2N 3312-26-2NA 3312-26-2NB 3312-26-2ND - -
 3312-26-2NDJ 3312-26Z
Recept 3322-26 3322-26-2N 3322-26-2NA 3322-26-2NB 3322-26-2ND -
 -
 3322-26-2NDJ 3322-26Z
B 44 Plug 3312-44 3312-44-2N 3312-44-2NA 3312-44-2NB 3312-44 -2ND -
 -

3312-44-2NDJ

 3312-44Z
Recept 3322-44 3322-44-2N 3322-44-2NA 3322-44-2NB 3322-44 -2ND -
 -

3322-44-2NDJ

 3322-44Z
C 62 Plug 3312-62 3312-62-2N 3312-62-2NA 3312-62-2NB 3312-62-2ND -
 -

3312-62-2NDJ

 3312-62Z
Recept 3322-62 3322-62-2N 3322-62-2NA 3322-62-2NB 3322-62-2ND -
 -

3322-62-2NDJ

 3322-62Z
D 78 Plug?/font> 3312-78 3312-78-2N 3312-78-2NA 3312-78-2NB 3312-78-2ND -
 -

3312-78-2NDJ

 3312-78Z
Recept 3322-78 3322-78-2N 3322-78-2NA 3322-78-2NB ?322-78T-2ND -
 -

?322-78-2NDJ

 3322-78Z
* Also Available (Contact Ho Chien for more information):
- Mounting options in Zinc Shell.
- Blue or Black insulation.
- Contact gold plating upgrade. **
- Custom length of contact leads. **
- All connectors can be customly altered to fit your needs. **
** minimum orders and/or tooling charges may apply
** For PA6T Arlen Grains - High Temperature 260C : Suffix N6 by N6, Example 3322-44N6-2N

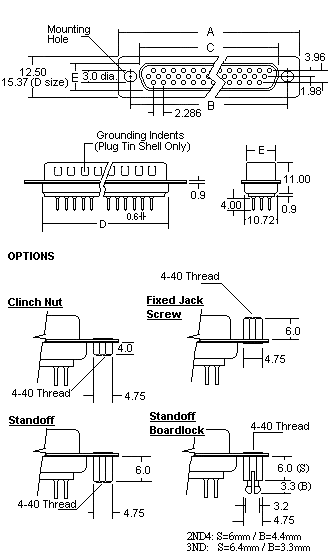

Mechanical Specification and Mounting Option:
Dimension (mm)
Shell
Size		 No.
Pos.		 Plug (M) /
Recept (F)		 A B C D E
E 15 Plug (M) 30.81 24.88 16.92 19.28 8.36
Recept (F) 16.33 7.90
A 26 Plug (M) 39.14 33.32 25.25 27.51 8.36
Recept (F) 24.66 7.90
B 44 Plug (M) 53.04 47.04 38.96 41.30 8.36
Recept (F) 38.38 7.90
C 62 Plug (M) 69.32 63.50 55.42 57.71 8.36
Recept (F) 54.84 7.90
D 78 Plug (M) 66.93 61.11 52.81 55.32 11.07
Recept (F) 52.43 10.74
Note: Mounting Option (pdf)
