3313-FE Series
0.350" High Density D-Sub w/ Ferrite (EMI)

Material:
Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Black


Electrical:
Contact Current Rating: 5 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55^oC to +105^oC

Ordering Part Number

Shell
Size

No.
Pos.

Plug (M) /
Recept (F)

Tin Shell

Jackscrew /
Boardlock

Rivet Insert /
Boardlock

Rivet Insert /
Boardlock
w Jackscrew

E

15

Plug (M)

3313-15MFE

3313-15MFE-A

3313-15MFE-AA

Recept (F)

3313-15FE

3313-15FE-A

3313-15FE-AA

* Also Available (Contact Ho Chien for more information):
- Zinc Shell
- 4 pronge boardlock
- Contact gold plating upgrade. **
- Custom length of contact leads. **
- All connectors can be customly altered to fit your needs. **
** minimum orders and/or tooling charges may apply

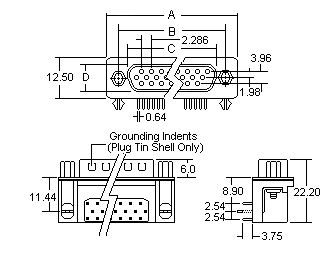

Mechanical Specification

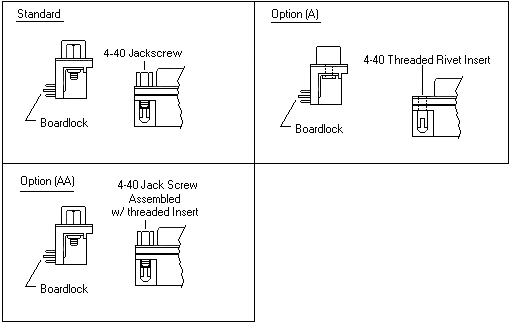

Mounting Option
