Ho Chien Enterprise Co., Ltd.

3313 / 3313M Series
0.350" High Density D-Sub PCB Right Angle

Material:
Shell: Steel w/ Tin Plated (optional Zinc plating)
Contact: Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Black

Electrical:
Contact Current Rating: 5 Amp
Contact resistance: 10 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 1000V AC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55^oC to +105^oC

Ordering Part Number
Shell Size	No. Pos.	Plug (M) / Recept (F)	Tin Shell			Zinc Shell
Shell Size	No. Pos.	Plug (M) / Recept (F)	Jackscrew / Boardlock	Rivet Insert / Boardlock	Rivet Insert / Boardlock w Jackscrew	Jackscrew / Boardlock
E	15	Plug (M)	3313-15M	3313-15MA	3313-15MAA	3313-15MZ
E	15	Recept (F)	3313-15	3313-15A	3313-15AA	3313-15Z
A	26	Plug (M)	3313-26M	3313-26MA	3313-26MAA	3313-26MZ
A	26	Recept (F)	3313-26	3313-26A	3313-26AA	3313-26Z
B	44	Plug (M)	3313-44M	3313-44MA	3313-44MAA	3313-44MZ
B	44	Recept (F)	3313-44	3313-44A	3313-44AA	3313-44Z
C	62	Plug (M)	3313-62M	3313-62MA	3313-62MAA	3313-62MZ
C	62	Recept (F)	3313-62	3313-62A	3313-62AA	3313-62Z
* Also Available (Contact Ho Chien for more information): - Mounting options in Zinc Shell. - 4 pronge boardlock - Contact gold plating upgrade. - Custom length of contact leads. - All connectors can be customly altered to fit your needs. minimum orders and/or tooling charges may apply

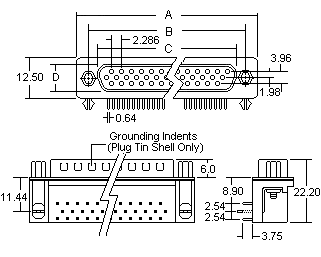

Mechanical Specification

Dimension (mm)
Shell Size	No. Pos.	Plug (M) / Recept (F)	A	B	C	D
E	15	Plug (M)	30.81	24.88	16.92	8.36
		Recept (F)			16.33	7.90
A	26	Plug (M)	39.14	33.32	25.25	8.36
		Recept (F)			24.66	7.90
B	44	Plug (M)	53.04	47.04	38.96	8.36
		Recept (F)			38.38	7.90
C	62	Plug (M)	69.32	63.50	55.42	8.36
		Recept (F)			54.84	7.90

Mounting Option
