| 3328 Series (Stamp Pin Contact) High Density D-Sub PCB High profile Vertical Type Material: Shell: Steel w/ Tin Plated (optional Zinc plating) Contact: Phosphor Bronze Contact Plating: 0.000127mm [0.000005"] Gold Contact Underplating: 0.00254mm [0.000100"] min. Nickel Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O ????????: UL File# E107536, material D202G30@ Color: White (optional Black and Blue) Electrical: Contact Current Rating: 5 Amp Contact resistance: 10 Miliohms Max. Insulation Resistance: 1000 Megohms @ 1000V AC Dielectric Withstanding: 1000V AC min. rms Operation Temperature: -55oC to +105o |
|
| Ordering Part Number | ||||||||
| Shell Size |
No. of Position |
Plug (M) / Recept (F) |
Tin Shell | Zinc Shell | ||||
| Mounting Hole | Clinch Nut - Rear ?/font> | Fixed Jackscrew - Front | Standoff Boardlock |
Standoff Boardlock w Jackscrew Assembly |
Mounting Hole | |||
| E | 15 | Recept(F) |
3328-15 | 3328-15-2N | 3328-15-2NA | 3328-15-2ND | 3328-15-2NDJ | 3328-15Z |
| A | 26 | Recept(F) |
3328-26 | 3328-26-2N | 3328-26-2NA | 3328-26-2ND | 3328-26-2NDJ | 3328-26Z |
| B | 44 | Recept(F) |
3328-44 | 3328-44 -2N | 3328-44 -2NA | 3328-44 -2ND | 3328-44 -2NDJ | 3328-44Z |
| C | 62 | Recept(F) |
3328-62 | 3328-62-2N | 3328-62-2NA | 3328-62-2ND | 3328-62-2NDJ | 3328-62Z |
| D | 78 | Recept(F) | 3328-78 | 3328-78-2N | 3328-78-2NA | ?328-78-2ND | 3328-78-2NDJ | 3328-78Z |
| * Also Available (Contact Ho Chien for more information): - Mounting options in Zinc Shell. - Blue or Black insulation. - Contact gold plating upgrade. ** - Custom length of contact leads. ** - All connectors can be customly altered to fit your needs. ** ** minimum orders and/or tooling charges may apply |
||||||||

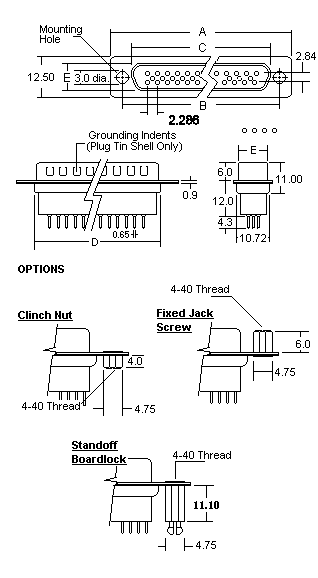

Mechanical Specification and
Mounting Option:
|
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
