3961 Series
0.156" Card Edge Connector , Solder Type

Material:
Contact: Copper Alloy
Contact Plating: Matting area: Selected Gold over Nickel Underplating
                           Solder area: Tin over Nickel Underplating
Insulator: Glass-Reinforced Thermoplastic PBT 94V-0

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 500 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -40oC to +85oC
Drawing: 3961 (pdf)
3961-
 [][]
 []
 -[]
Series
Number		 Number of
Positions		 Contact
Plating
 Contact Style
3961: Solder Dip w Mounting Ear.
 [ 10 thru 72 pins ]

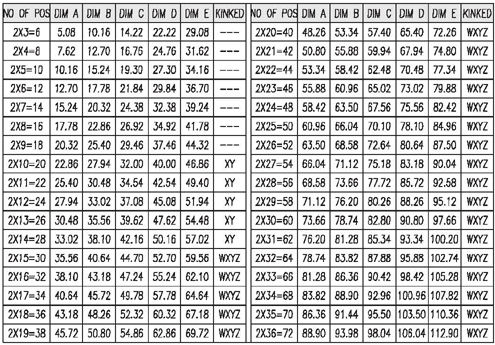

(See Table)
 G: 5u" Selected Gold
F: 10u" Selected Gold
E: 15u" Selected Gold
D - No Kink
2 - 2 Pair Kink
4 - 4 Pair Kink
3961
spec-3961.jpg Spec-3961a.jpg
