3961D 3961S Series
0.156" Card Edge Connector

Material:
Contact: Copper Alloy
Contact Plating: Matting area: Selected Gold over Nickel Underplating
                           Solder area: Tin over Nickel Underplating
Insulator: Blue Glass-Reinforced Thermoplastic PBT 94V-0

Electrical:
Current Rating: 3 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 500 Megohms Min. DC 500V
Dielectric Strength: 1000V AC
Operation Temperature: -40oC to +85oC

Drawing: 3961 (pdf)


3961D
3961S
 []
 -[][]
 []
Series
Number		 Mount Ear
 Number of
Positions		 Contact
Plating
3961D: Dip Type
3961S: Solder Type
 Blank - No Mounting Ear
E - W Mounting Ear		 [ 10 thru 72 pins ]

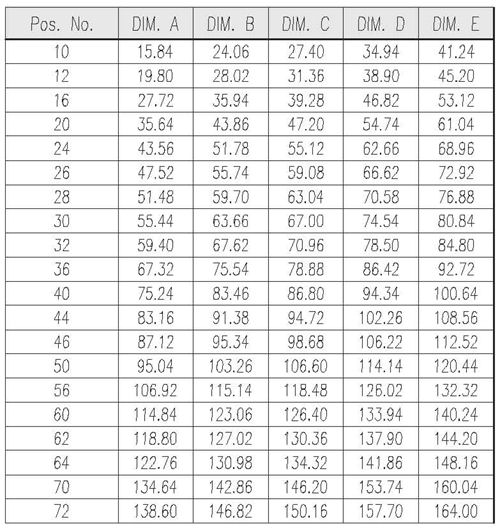

(See Table)
 Blank - 5u" selected Gold Plating
3961D / 3961S
Spec-3961D.jpg Spec-3961Da.jpg
