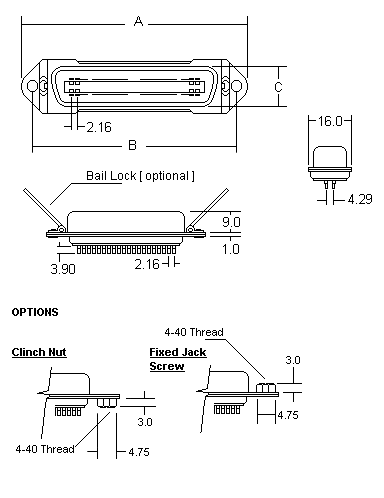

5710, 5720, & 5740 Series
Centronic Connector; Solder Cup Type
[ EMI Front Shield ]
Materials:
Contact: Phosphor
Bronze
Contact Plating:
0.000005" Selective Gold
Contact Underplating:
0.00254mm [0.000100"] min. Nickel
Shell: Steel;
Nickel Plated
Insulation: PBT
& 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Blue
Electrical:
Contact Current Rating:
5 Amp
Contact resistance:
30 Miliohms Max.
Insulation Resistance:
1000 Megohms @ 500V DC
Dielectric Withstanding:
1000V AC min. rms
Operation Temperature:
-55oC to +105oC
|
|
