5715 and 5725 Series
Centronic Connector; PCB Type
[ EMI Front Shield ]

Materials:
Contact: Phosphor Bronze
Contact Plating: 0.000005" Selective Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Shell: Steel; Nickel Plated
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Blue

Electrical:
Contact Current Rating: 5 Amp
Contact resistance: 30 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 500V DC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55oC to +105oC
RoHs
Ordering Part Number
5715 - [][] - [] - [][]
Series Number Number of Positions Option Mounting Options
5715: Plug [ Male ]
5725: Recept [ Female ]
 14, 24, 36, 50 Blank: with Bail Locks
A: w/o Bail Locks

Note: Bail Locks avail on
recept. only. Plug connector
leave blank.		 Blank: 3.0mm dia. Mounting Hole
2N: 4-40 Clinch Nut
2NA: 4-40 Fixed Jack Screw
2NB: 4-40 Standoff
2ND: 4-40 Standoff Boardlock 6.0mm
4ND: 4-40 Standoff Boardlock 4.4mm

Note: 2NA option not avail. with Bail Locks

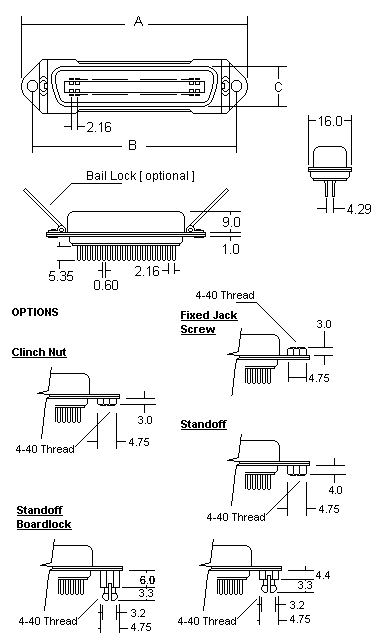

Dimensions ( mm )
Positions A B C
14 43.90 36.00 Plug: 12.0

Recept: 11.8
24 54.70 46.80
36 67.70 59.70
50 82.80 74.90
