Ho Chien Enterprise Co., Ltd.

5745 Series
Centronic Connector; Right Angle PCB Type
[ EMI Front Shield ]

Materials:
Contact: Phosphor Bronze
Contact Plating: 0.000005" Selective Gold
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Shell: Steel; Nickel Plated
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O
Color: Blue

Electrical:
Contact Current Rating: 5 Amp
Contact resistance: 30 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 500V DC
Dielectric Withstanding: 1000V AC min. rms
Operation Temperature: -55^oC to +105^oC

Ordering Part Number

5745 -	[][]	[]	- [][]	- [][]
Series Number	Number of Positions	Type	Optioins	Contact Plating
	14, 24, 36, 50	M: Plug [Male] Blank: Recept [Female]	Blank: with bail lock; w/o boardlock, Assembly Type (Screw) A: w/o bail lock, w boardlock, ?/font>#4-40 Rivet Insert. Z: with bail lock, w boardlock, ?/font>Assembly Type (Screw) AZ: w/o bail lock; with boardlock, #4-40 Rivet Insert. Note: bail lock available on receptacle connector only.	Blank: 5u" Gold G30: 30u" Gold

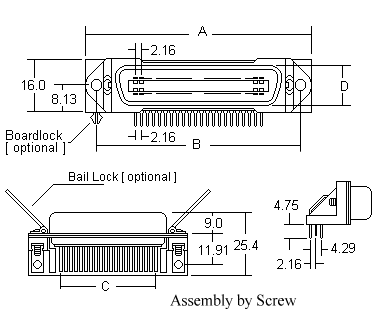

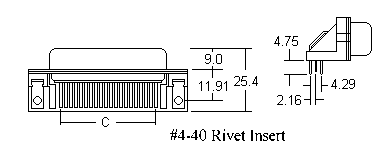

Dimensions ( mm )
Pos.	A	B	C	D
14	43.90	36.00	12.96	Plug: 12.0 Recept: 11.8
24	54.70	46.80	23.76
36	67.70	59.70	36.72
50	82.80	74.90	51.84
