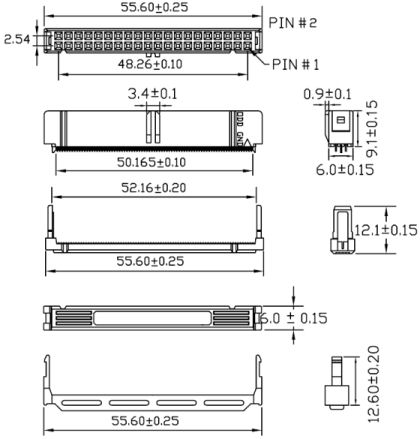

ATA Series  RoHS compliant

Material:

Contact: Phosphor Bronze
Contact Plating: Selected Gold 5u"  over100u" Nickel Underplating
Insulator: PPS & 40% glass fiber reinforced thermo plasitc; rated UL94V-O
Insulator Color:  See Table

Electrical:

Voltage  Rating: 30Vac
Current Rating: 0.5 Amp Max per contact
Contact Resistance: 35 Milliohms. Max.
Insulation Resistance: 500 Megohms Min. DC 250V
Dielectric Strength: 500V AC
Operation Temperature: -55oC to +105oC


Mating : 2542-2X20G (Header)
              2542-2X20G (HeaderR/A)

              2532-40 (Box header)
              2533-40 (Box header R/A)

              2530-40 (-S) (Box header w  Latch)
              2531-40-S (Box header R/A w Latch)



RoHs

Ordering Part Number:

ATA80 -

-[]

-[][]

-[]

Note

Series Number

#20 Blocked

Insulator Color

Strain Relief

Grounding Pin



A: Blacked
B: Un-Blacked

BK: Black

Blanket: w/o strain Relief
-3: w strain Relief (Black Color only)

2, 19, 22, 24, 26, 30, 40

BL: Blue

2, 19, 22, 24, 26, 30, 34, 40
#34 Pin last mating

GY: Grey

2, 19, 22, 24, 26, 30, 40 and
#28 contact unload

RD: Red

2, 19, 22, 24, 26, 30, 34, 40
#34 Pin last mating
