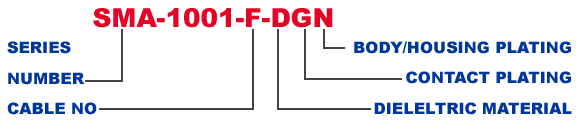

DIELELTRIC
MATERIAL
|
T=TEFLON
D=DELRIN
B=BAKELITE
P=PBT
PP=POLYPROPYLENE
|
|
|
CABLE
NO
|
-
A=6A/U, 6/U
-
B=8A/U, 213/U
-
C=9A/U, 214/U
-
D=11A/U
-
E=22B/U
-
F=58/U, 58A/U,
58C/U, 141A/U
-
G=59/U, 59A/U,
59B/U, 62A/U, 210/U
-
H=71B/U
-
J=108A/U
-
K=142B/U
-
L=174/U, 188A/U,
316/U
-
M=178U, 196/U
-
N=179B/U, 187A/U
-
P=223/U
-
Q=BELDEN 8281
-
R=BELDEN 8227,
9207 & IBM 7362211
-
T=BELDEN 9913
-
X=ETHERNET
-
Y=PROFLEX
-
Z=8/X
-
V=LMR 600
|
|
|
CONTACT
PLATING
|
G=GOLD
S=SILVER
N=NICKEL
T=TIN
|
|
|
BODY/HOUSING
PLATING
|
G=GOLD
S=SILVER
N=NICKEL
T=TIN
BC=BLACK
CHROME
WC=WHITE
CHROME
BN=BLACK
NICKEL
Z=ZINC DIECAST
|
|
| By
Industrial type
1. Micro-Miniature
MMCX series - 50 ohm, Hf up 6GHz, Reliabe snap-on mating design
low RF-leakage.
2. SMA
- High electrical performance for microwave application up to 12 GHz.
3. SMB
- High electrical performance for microwave application up to 4 GHz.
4. N
connector - Laboratory test, Satellite TV, HDTV
5. Mini.
UHF - Lightweight, compact, up to 2GHz.
6. BNC
- Radio Teleccommunication, Medical Equipment, Computer network, Test Equipment. |
|
