Battery Holder

Material:
Contact: Berylium Copper or Phosphor Bronze
Contact Plating: 0.000127mm [0.000005"] Tin
Contact Underplating: 0.00254mm [0.000100"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O

Electrical:
Contact Current Rating:DC 3V~120mA
Contact resistance: 10 Miliohms Max.
Insulation Resistance:100M OHM MIN. AT 500V D.C.
Dielectric Withstanding:NO DEGRADATION WITH DC 500V APPLIED FOR ONE MINUTE.
Operation Temperature: -55oC to +105oC

RoHs
Mechanical Specification : BeCo material has min. qty for production.

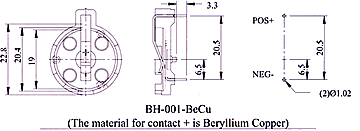

BH-001-BeCu
BATTERY HOLDER FOR BATTERY CR2032

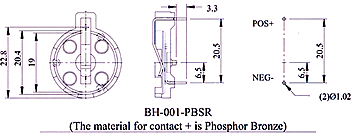

BH-001-PBSR
PIC-BH-001-PBSR.gif 		BATTERY HOLDER FOR BATTERY CR2032

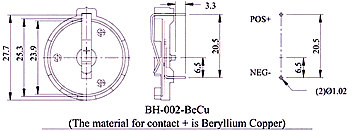

BH-002-BeCu
PIC-BH-002-BeCo.gif 		BATTERY HOLDER FOR BATTERY CR2425

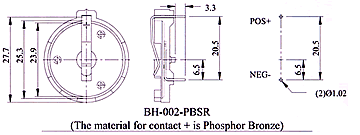

BH-002-PBSR
PIC-BH-002-PBSR.gif 		BATTERY HOLDER FOR BATTERY CR2425

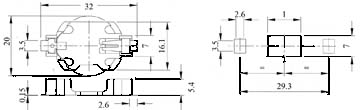

BH-004
PIC-BH-004.gif 		BATTERY HOLDER (SMT TYPE) FOR BATTERY CR2032
Contact Material: Stainless Steel

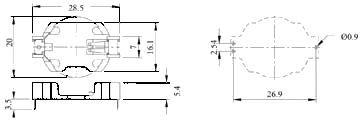

BH-005
PIC-BH-005.gif 		BATTERY HOLDER FOR BATTERY CR2032
Contact Material: Stainless Steel

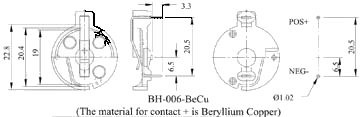

BH-006-BeCu
BATTERY HOLDER FOR BATTERY CR2032

BH-006-PBSR
PIC-BH-006-PBSR.gif 		BATTERY HOLDER FOR BATTERY CR2032

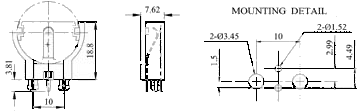

BH-008
PIC-BH-008.gif 		BATTERY HOLDER FOR BATTERY CR2032 (STRAIGHT TYPE)
