EUROSTYLE P.C.B. TERMINAL BLOCK
ETB 18 SERIES  5mm & 10mm (CLAMPING TYPE)
     FEATURES
  • Easy to assemble for any number of positions.
  • End stackable without any loss of P.C.B. space.
  • Special wire protector design to ensure reliable wire clamping.
  • UL 94V-0 fire retardant engineering plastic used for the housing.
  • Be capable of clamping a wide range of wire diameters.
  • Compact size for P.C.B.

    SPECIFICATION

  • Pitch 5.0 mm, 10.0 mm
    Wire range 14 AWG to 24 AWG
    No. of pole per Block 2PX2 or 3PX2
    Rated 10 Amp, 300 VAC
    Housing Polyamide 66, Blue
    Terminals Tin plated over Brass
    Screws M2.6x0.45P, Yellow Chromated
    Zinc plated over Steel
    Wire cage Nickel plated over Zinc Alloy

RoHs

  ETB 18 02 0 X X XX Z
   |   |  | | | |  | |
   |   |  | | | |  | +--- Z:RoHS Compliant
   |   |  | | | |  +--- Special number
   |   |  | | | |       D0:Strip pin for ETB02,16 only
   |   |  | | | +--- Screw type:
   |   |  | | |      0:"+" screw
   |   |  | | |      1:"-" screw
   |   |  | | +--- Housing color:
   |   |  | |      B:Bule, G:Green, K:Black
   |   |  | +--- Pitch:
   |   |  |      0:Standard pitch
   |   |  |      1:Standard pitch
   |   |  +--- Number of pins
   |   +--- Series: Dimensions and rated
   +--- Model

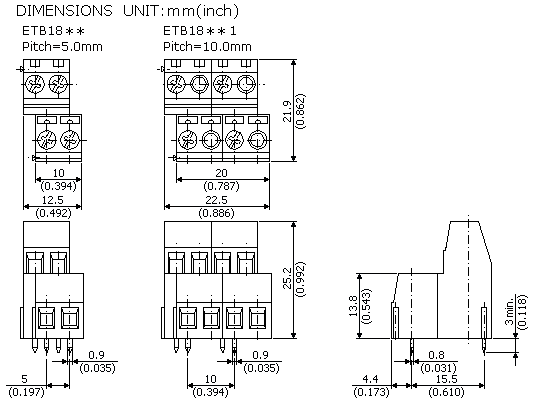

DRAWING (MOUNT TYPE)
