Flat Ribbon Cable

Materials:

Material of Insulationt: Polyvinyl Chloride (PVC) Gray
Insulation Thickness Average: 9 mil
Min. Insulation Thickness Underplating: 7 mil

Grade:

UL No: E189529
UL Style: 2651
CSA Standard: C22.2 No. 210.2
Flame Test: VW-1, FT1, FT2
Rate Voltage: 300V AC min. rms
Rate Temperature: +105^oC

Electrical:

Spark Test: 2500V
Dielectric Strength Test: 2KV 1min. minute
Conductor resistance: 237 ohm / km Max.
Insulation Resistance: 1000 Megohms @ meter
Inductance: 1.45uH/m
Impedance :100 ohm
Capacity :40PF/m
Propagation Delay time :4.2nS/m
Rate Temperature:+105^oC

RoHs

Ordering Part Number: (250'/Roll)

FC -	[][]	- [][][]	- 250
Series Number	Number of Positions	Pitch	Length
	20, 26, 34, 44, 50, 68	1.00 mm: 100	250 ft per roll
	9, 10, 12, 14, 16, 18, 20, 22,24, 26, 28, 30, 32,34, 36, 34, 36, 40, 44, 50, 56, 60, 62, 64	1.27 mm: 127
	50, 68, 80, 100	0.635 mm: 0635

Custom Size Ribbon Cable 3.25" Stripped & Tinned

FC1-07-3.25-SD0

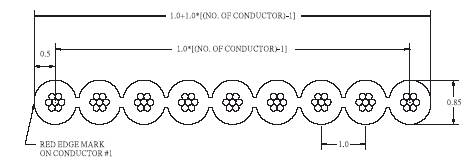

1.00mm Pitch

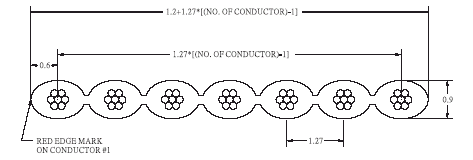

1.27mm Pitch
