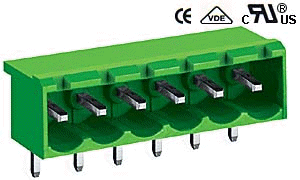

| ME030-508 Series 0.078" Single Row PCB Socket Strip Material: Environmental:

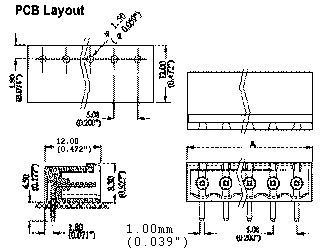

Operation temperature: -55 ℃ to 105 ℃ Short-time temperature: up to 250℃ ( 482℉) Electrical: Current rating: 12 Amp AC300V Insulation Withstands Volt: AC2000V min Insulation resistance: >5000MΩ DC500V PCB hole Dia.: φ1.5mm
|
|
|

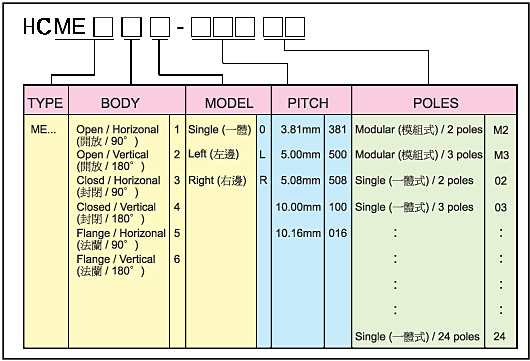

Ordering Part Number:
|
||
|
|
|
|
