HJ Series
0.098" (2.50mm)" Crimp Style Connector
Material:
Contact: Terminal: Phosphor Bronze, Contact: Brass
Contact Plating: Tin over 100u" Nickel
Underplating
Insulator:Nylon 6T; rated UL94V-O,
Insulator Color: White
Applicable Wire: 22 ~ 28 AWG
Electrical:
Voltage Rating: 250V
Max.
Current Rating: 3 Amp
Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min.
Dielectric Strength: 1000V AC
Operation Temperature: -55oC
to +105oC
|
|
Ordering Part Number
| HJ - |
[][] |
| Series Number |
Number of
Positions |

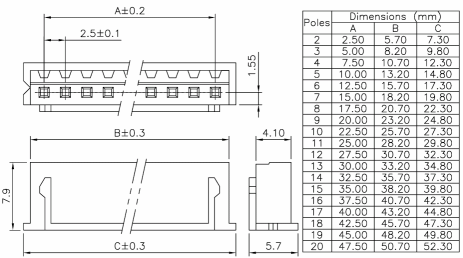

HJ-2001-
Housing
|
2, 3, 4, 5, 6 ~ 20 |

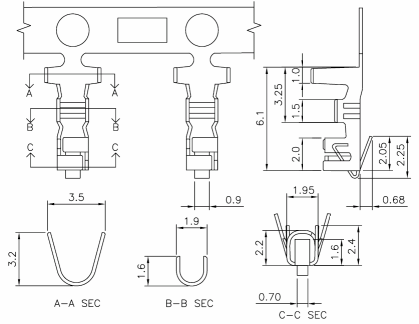

HJ-2001-T
Terminal for HCJ2001 Housing
|
|

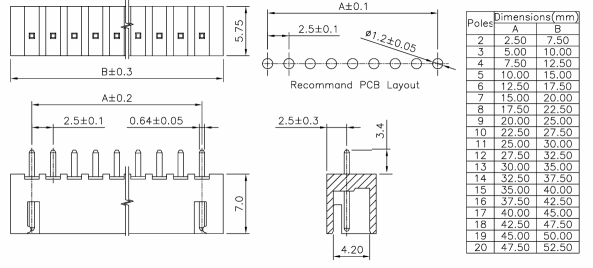

HJ-1001-
Straight Wafer
|
2, 3, 4, 5, 6 ~ 20
|

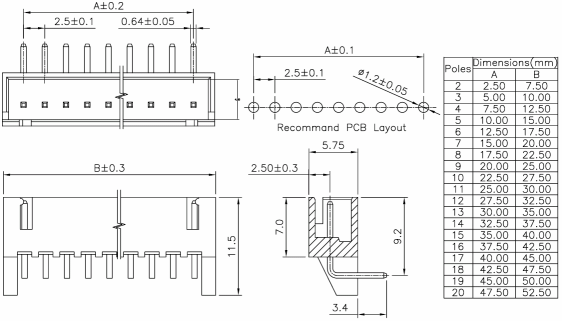

HJ-1001R-
Straight Wafer
|
2, 3, 4, 5, 6 ~ 20
|
|
