Ho Chien Enterprise Co., Ltd.

IEEE 1394 Series

Materials:
Contact: Phosphor Bronze
Contact Plating: Selective Gold
Contact Underplating: 0.00127mm [0.000050"] min. Nickel
Insulation: PBT & 30% glass fiber reinforced thermo plastic: UL94V-O

Electrical:
Contact Current Rating: 1 Amp
Contact resistance: 30 Miliohms Max.
Insulation Resistance: 1000 Megohms @ 500V AC
Dielectric Withstanding: 500V AC min. rms
Mating Force: 3.0Kg Max.
Unmating Force: 0.5Kg Max.
Operation Temperature: -55^oC to +60^oC

Contact Plating :
Min. qty. per order

Ordering Part Number

1394-	[]	[]	[]	[]	[]
Series Number	Number of Positions	Contact Plating Selected	Type	Shell Plating	Insulator Color
Female	4 : 4 pos. 6 : 6 pos. 9 : 9 pos.	0: Gold Flash 1: 5u" Gold 2: 10u" Gold 3: 15u" Gold 4: 30u" Gold	1: Straight 2: Right Angle 3: SMT Type 4: Side Entry 5: Side Entry w Sprint	1: Nickel 2: Tin 3: Gold Flash	1: White 2: Black (PBT) 3:?/font>Black (LCD)

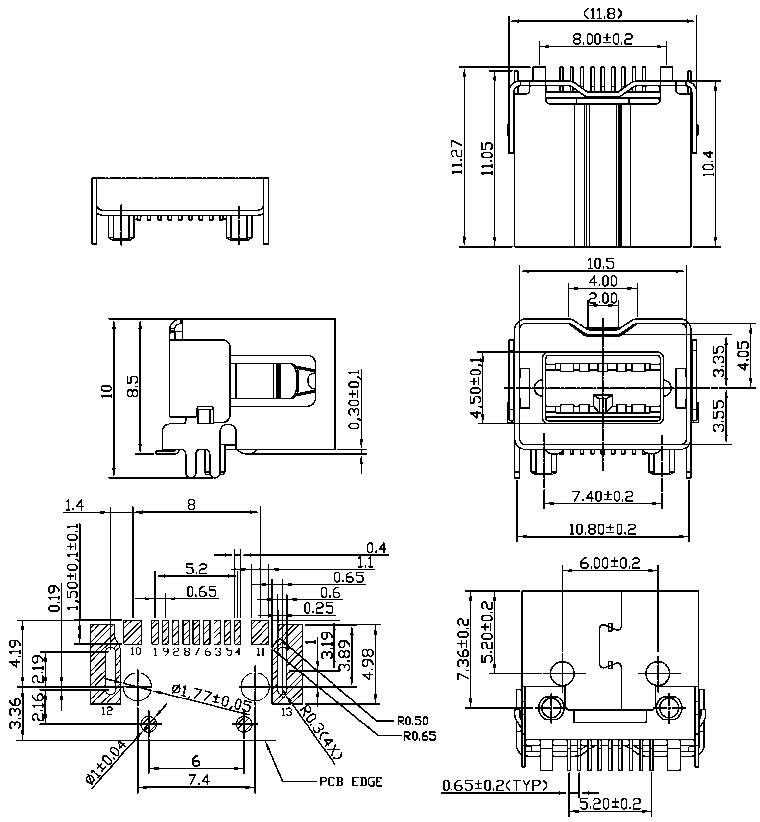

IEEE 1394 9P SMT Non Shield
