Descriptions

Part
Number

Dimensions (mm)

Drawing

A

B

C

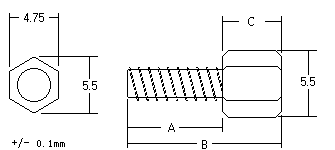

Full Set [ 8 pcs ]

N023

6.95

11.8

4.85

Screw Only
3/16 (5.5mm)
Hex Screws

N023-1

6.95

11.8

4.85

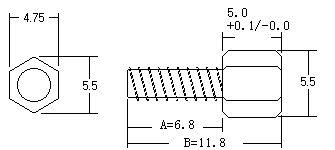

N023-1A

6.8

11.8

5.0

N003-6/7.1

7.1

13.1

6.0

N003-10

5.0

10.0

5.0

N003-9.5

4.5

9.5

5.0

N003-17

12.25

17.0

4.75

Nut Only

N023-2

-

-

-

Spring Washer Only

N023-3

-

-

-

Flat Washer Only

N023-4

-

-

-

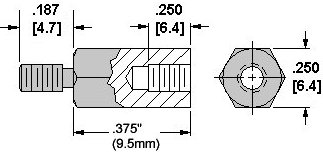

Male- Female .25"
Hex Head

MF440-14.2
