| PV5 Series Rubber Grommets Material: Material: PVC UL 94V-0
|
 |
||||||
Ordering Part Number
|
 |

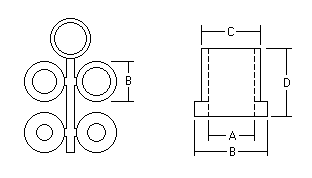

| Dimensions (mm) | |||||||||
| Shell Size | Part Number | A1 | A2 | A3 | A4 | A5 | B | C | D |
| Shell
Size: E and A Standard: 9 and 15 pos. High Density: 15 and 26 pos. |
PV5-1 | 5.0 | 6.0 | 7.0 | 8.0 | 8.5 | 12.0 | 10.0 | 11.8 |
| Shell
Size: B Standard: 25 and 37 pos. High Density: 44 and 62 pos. |
PV5-2 | 6.0 | 7.0 | 8.0 | 9.0 | 10.0 | 14.0 | 12.0 | 12.0 |
| Shell
Size: C and D Standard: 50 pos. High Density: 78 pos. |
PV5-3 | 8.5 | 10.0 | 11.5 | 13.0 | 14.5 | 18.0 | 16.0 | 18.0 |
|
|
|
|
