PVC5 Series
Conductive Rubber Grommets
  • For EMI / RFI Protection and Strain Relief
  • Use with D-Sub Backshells

Material:
Material: PVC [ Conductive ] UL 94V-0
Ordering Part Number
PVC5 - []
Part Number Size

1: for Size E , A and B Shells
2: for Size C Shells
3: for Size D Shells

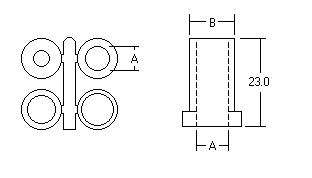

Dimensions (mm)
Shell Size Part Number A1 A2 A3 A4 B
Shell Size: E, A and B
Standard: 9, 15 and 25 pos.
High Density: 15, 26 and 44 pos.		 PVC5-1 4.7 6.3 7.4 8.5 10.2
Shell Size: C
Standard: 37 pos.
High Density: 62 pos.		 PVC5-2 8.1 10.4 12.7 - 15.8
Shell Size: D
Standard: 50 pos.
High Density: 78 pos.		 PVC5-3 8.7 10.8 12.6 16.5 18.5
