Ho Chien Enterprise Co., Ltd.

SATA Series RoHS compliant

Material:
Contact: Phosphor Bronze
Contact Plating: 0.000150" Tin over 0.000100" Nickel Underplating
Insulator: PPS & 40% glass fiber reinforced thermo plasitc; rated UL94V-O
Insulator Color: Black

Electrical:
Current Rating: 1 Amp Max.
Contact Resistance: 30 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 500V AC
Operation Temperature: -55^oC to +125^oC

Ordering Part Number:

SATA -	[][]	[]	[]	[]		[]
Series Number	Number of Positions	Type	Contact Plating	Insulator		Type
	07 (Signal) 15 (Power) 22 (Signal + Power)	M: Male F: Female	0: 5u" Selected Gold 1: 15u" Gold Select 2: 30u" Gold Select	0: Black (PBT) 1: Black (LCP) 2: Black (PA9T)		0: Solder Type 1: Dip Type 2: IDC Type (Short Cover) 3: IDC Type (Longt Cover) 4: SMT Type 5: Assembly Type 6: Standard Type 7: IDC Type (Short Cover w Spring) 8: IDC Type (Longt Cover w Spring) 9: Right angle Dip type A: SMT Type (Reverse)
WATG	13	[]	3	L	1	P	U	3
Series Number	Number of Positions	Contact Plating	SMT Type	LCP Insulator	Black Color	Phosphor Bronze	RoHs	Tray Package

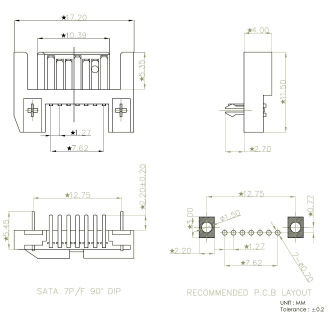

Drawing pdf		A: 5u" Gold D: 15u" Gold F: 30u" Gold
1: Dip Type				9: Right angle Dip type
