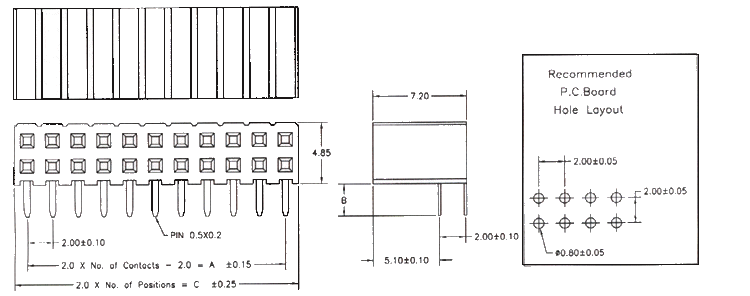

SFB203 Series
2.00x2.00mm (0.079"x0.079")
Dual Row PCB Socket Strip [ Right Angle ]

Material:
Contact: Copper Alloy
Contact Plating: Gold or Tin over 0.000100" Nickel Underplating
Insulator:PBT & 30% glass fiber reinforced
                thermo plastic - rated UL94V-O
Insulator Color: Black

Electrical:
Current Rating: 1.5 Amp Max.
Contact Resistance: 20 Milliohms. Max.
Insulation Resistance: 1000 Megohms Min. DC 500V
Dielectric Strength: 600V AC
Operation Temperature: -40oC to +105oC
Ordering Part Number
SFB203 - 2 X [][] []
Series Number Number of Rows Number of Positions Per Row Contact Plating


[ 2 thru 40 pins ] T: 200u" Tin
G:5u" Gold
